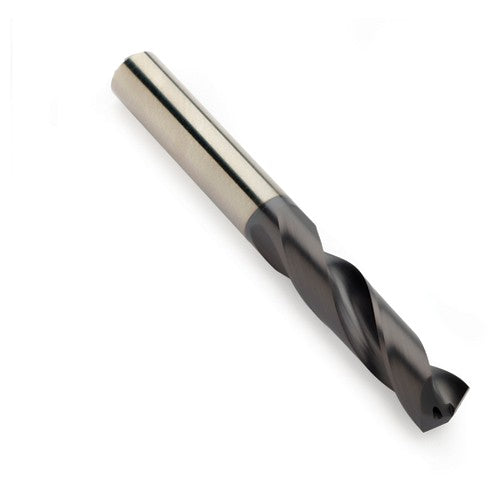

9.6 mm Dia. × 10 mm Shank × 47 mm Flute Length × 89 mm OAL, 140°, TiAlN, Coolant Thru, DIN 6535 HA | DIN 6537 K, Round Solid Carbide Drill
Item #: PT380626368
Brand: Dormer
Model #: 5980195
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 9.6 mm |
| Flute Helix Angle (FHA) | CW |
| Decimal Equivalent | 0.378″ |
| Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 9.6 mm |
| Shank Standard | DIN 6535 HA | DIN 6537 K |
| Length Group | Short |
| Shape | Solid Carbide |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Tool Type | Solid Carbide |
| Application | General Drilling |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Series/List # | R457 |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 47 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 89 mm |
