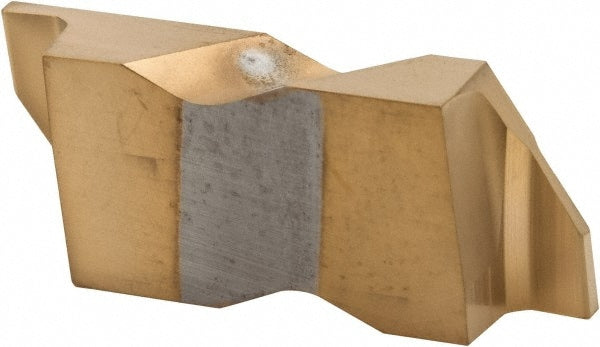

Brand: Tool-Flo / Part #: 563647LN4C
Item #: 88732789
Brand: Tool-Flo
Model #: 563647LN4C
Product Specifications
| Insert Style | FLG |
| Insert Size Code | 3047 |
| Insert Size | 3047 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | GP50 |
| Cutting Width (Decimal Inch) | 0.0469 |
| Cutting Width (mm) | 1.19 |
| Maximum Depth of Cut (Decimal Inch) | 0.0748 |
| Maximum Depth of Cut (mm) | 1.90 |
| Insert Hand | Left Hand |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0000 to 0.0750 |
| Cutting Height (Decimal Inch) | 0.3440 |
| Corner Radius (Decimal Inch) | 0.0050 to 0.0100 |
| Maximum Depth Of Cut Range (mm) | 0.00 to 2.00 |
| Lead Angle | 3 |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving |
| Series | Flo-Lock |
| Coating Process | PVD |
| Secondary Workpiece Material | Stainless Steel |
| Iso Code | FLG3047L |
| Maximum Corner Radius (Decimal Inch) | 0.0100 |
| Minimum Corner Radius (Decimal Inch) | 0.0050 |
| Full Radius | No |
| Gage Diameter (Decimal Inch) | 0.3750 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1950 |
| Coating/Finish | TiN |
