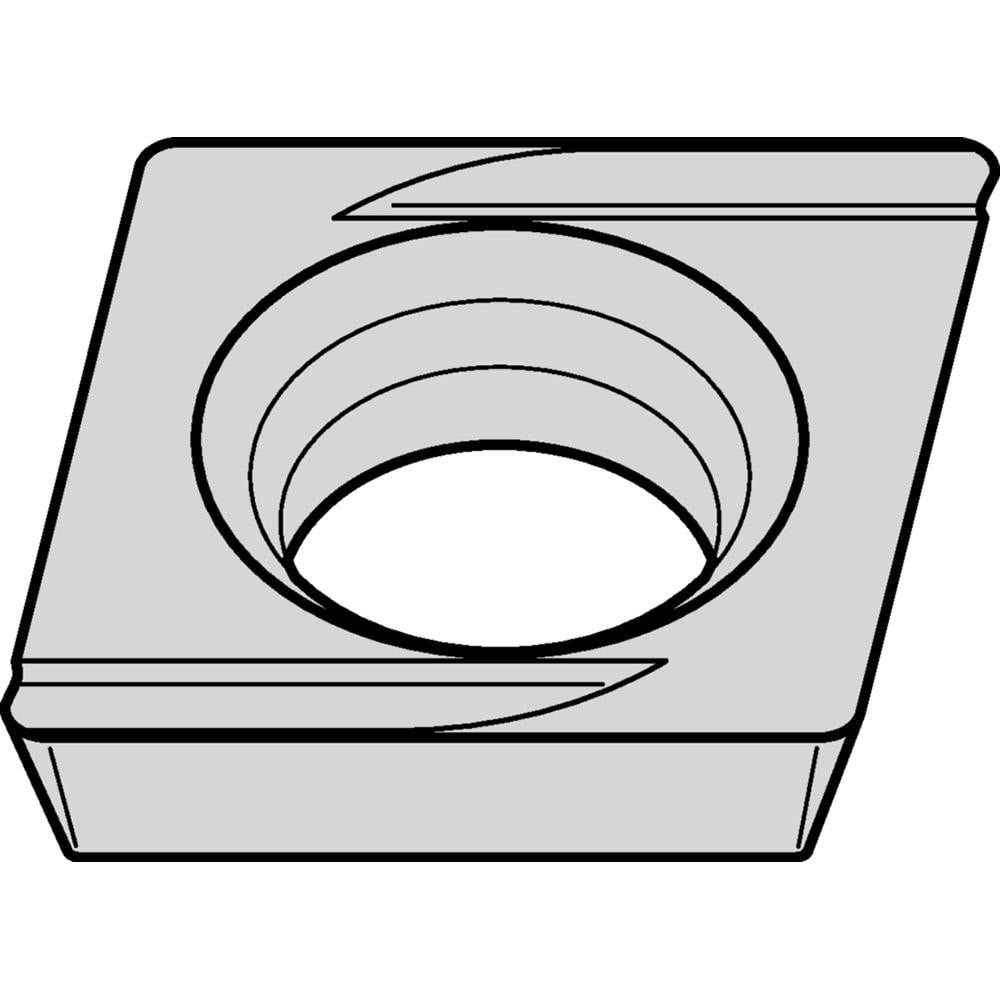

Brand: Widia / Part #: 2830700

Brand: Widia / Part #: 2830700


Item #: 94043635
Brand: Widia
Model #: 2830700

Product Specifications

Insert Style CDHH
Insert Shape Code C
Insert Size Code 120605
Insert Shape Diamond
Coating/Finish Uncoated
Manufacturer Grade CM1
Corner Radius (Decimal Inch) 0.0071
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.0839
Maximum Depth of Cut (Decimal Inch) 0.0795
Inscribed Circle (Decimal Inch) 0.1562
Insert Holding Method Screw
Insert Hand Left Hand
Insert Thickness (Decimal Inch) 0.0400
Clearance Code D
Tolerance Code H
Included Angle 80.00
Relief Angle 15.000
Series CDHH
Coating Process Uncoated
Rake Positive
Wiper Edge No
Insert Length (Decimal Inch) 0.1590
Number Of Cutting Edges 2
Secondary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel
Secondary Workpiece Material Code P; K; M; N
Ansi Code CDHH120605L
Iso Code CDHHS4T002L
Manufacturers Catalog Number CDHH120605L
Cutting Direction Left Hand
Coating Classification Uncoated
Chip Breaker None
Style CDHH
Width (Decimal Inch - 4 Decimals) 0.1562
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning; Boring
$16.66
