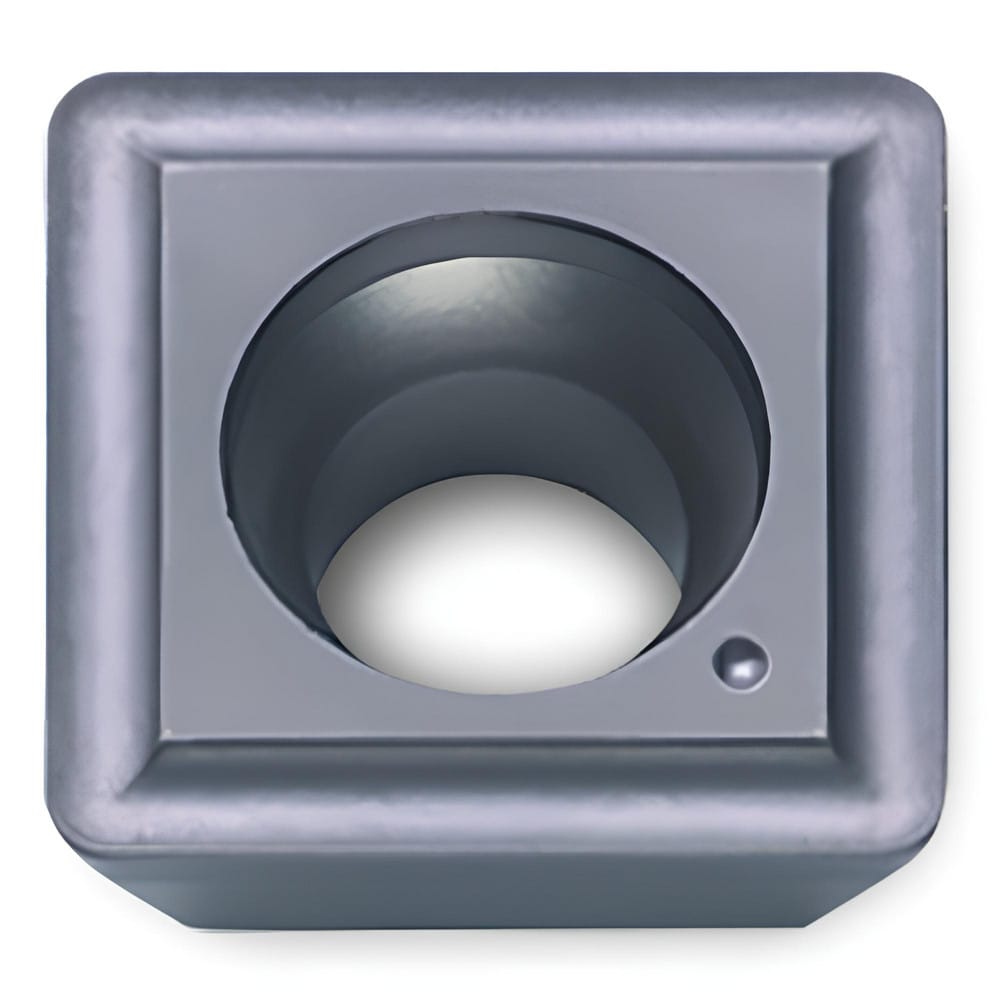

Brand: Ingersoll Cutting Tools / Part #: 5101035
Item #: 00531442
Brand: Ingersoll Cutting Tools
Model #: 5101035
Product Specifications
| Insert Style | SHLT |
| Insert Size Code | 090408 |
| Insert Material | Carbide |
| Manufacturer Grade | IN6520 |
| Inscribed Circle (Decimal Inch) | 0.3860 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Neutral |
| Series | SHLT |
| Coating Process | MTCVD |
| Maximum Depth of Cut (Decimal Inch) | 0.3550 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | SHLT090408N-PH1 |
| Manufacturers Catalog Number | SHLT090408N-PH1 IN6520 |
| Cutter Series Compatibility | Quad Drill Plus |
| Chip Breaker | PH1 |
| Cutting Direction | Neutral |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3860 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1690 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3860 |
