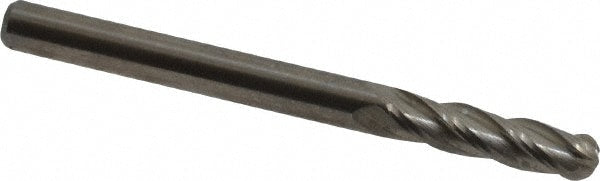

Brand: Niagara Cutter / Part #: N86271
Item #: 36711323
Brand: Niagara Cutter
Model #: N86271
Product Specifications
| Mill Diameter (Inch) | 1/8 |
| Mill Diameter (Decimal Inch) | 0.1250 |
| Length of Cut (Inch) | 1/2 |
| End Mill Material | Solid Carbide |
| Coating/Finish | Uncoated |
| Number Of Flutes | 4 |
| Extended Reach | No |
| Helix Angle | 30 |
| Variable Index | No |
| Length Of Cut Range (Decimal Inch) | 0.4000 to 0.7000 |
| Variable Helix | No |
| Length Type | Regular |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 1-1/2 |
| Mill Diameter Tolerance | +0.000 to -0.002 in |
| Shank Diameter Tolerance | -0.0001 to -0.0004 in |
| Overall Length Tolerance | +0.060 to -0.060 in |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | CB430 |
| Flute Type | Spiral |
| Single Or Double End | Single |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5000 |
