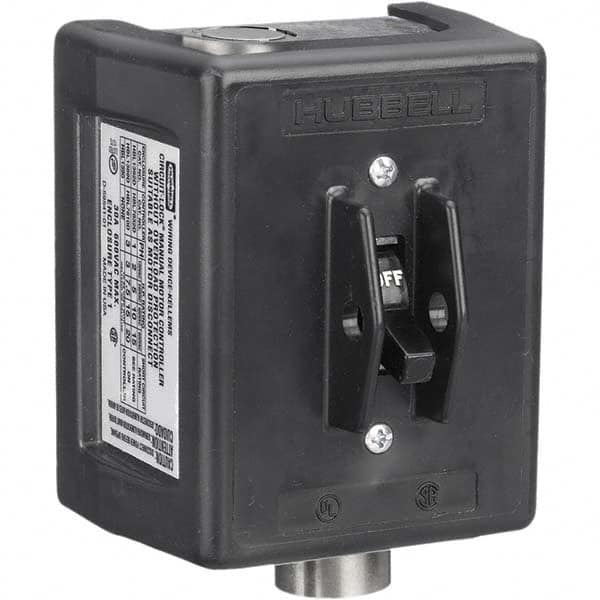

Hubbell Wiring Device-Kellems - Cam & Disconnect Switches Enclosure Type: Enclosed Fused: NonFused
Item #: 19064302
Brand: Hubbell Wiring Device-Kellems
Model #: HBL1389MQR
Product Specifications
Cam & Disconnect Switches; Enclosure Type: Enclosed ; Fused: NonFused ; Horsepower: 3 - 20 ; Number of Phases: 3 ; Amperage: 30 ; Contact Form: 3PST
| Enclosure Type | Enclosed |
| Fused | NonFused |
| Horsepower | 3 - 20 |
| Number of Phases | 3 |
| Amperage | 30 |
| Contact Form | 3PST |
| Voltage | 600 VAC |
| Horsepower at 1 Phase | 3 @ 120 V |
| Horsepower at 3 Phase | 60 @ 600 V |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Overall Depth (Inch) | 3.4300 |
| Overall Depth (Decimal Inch) | 3.43 |
| NEMA Enclosure Rating | 1 |
| Material | Thermoplastic |
| Overall Height (Decimal Inch) | 4.5200 |
| Overall Width (Decimal Inch) | 3.9000 |
| Standards Met | Listed to UL 2238 and UL 50E; UL 508, Industrial Control Equipment File #E36355 |
| Amperage Rating | 30 |
