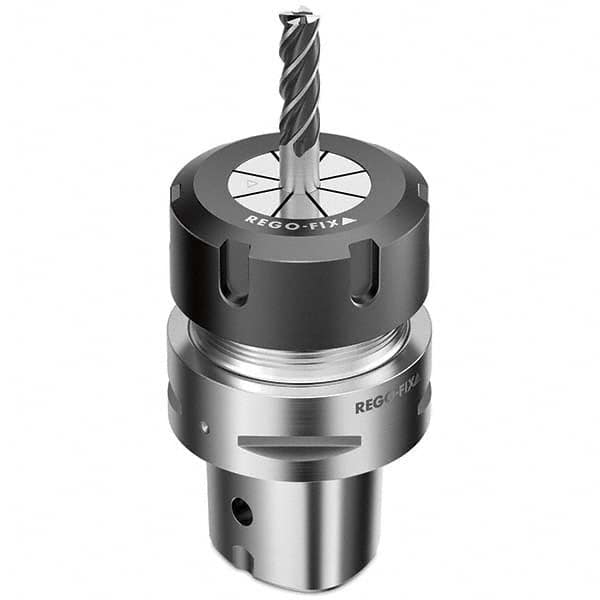

Rego-Fix - 0.5mm x 7mm C6 Hollow Taper ER11 Collet Chuck
Item #: 14837769
Brand: Rego-Fix
Model #: 4806.11170
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER11 |
| Shank Type | Hollow Taper |
| Taper Size | C6 |
| Projection (mm) | 150.00 |
| Through Coolant | Yes |
| Minimum Collet Capacity (mm) | 0.50 |
| Maximum Collet Capacity (mm) | 7.00 |
| Actuator Type | Wrench |
| Type | ER Collet |
| Nose Diameter (mm) | 19.00 |
| Maximum RPM | 25000 |
| Locknut Diameter (Decimal Inch) | 0.7486 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0030 |
| TIR (mum) | 3.00 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (mm) | 19.00 |
| Additional Information | With Hi-Q Nut |
