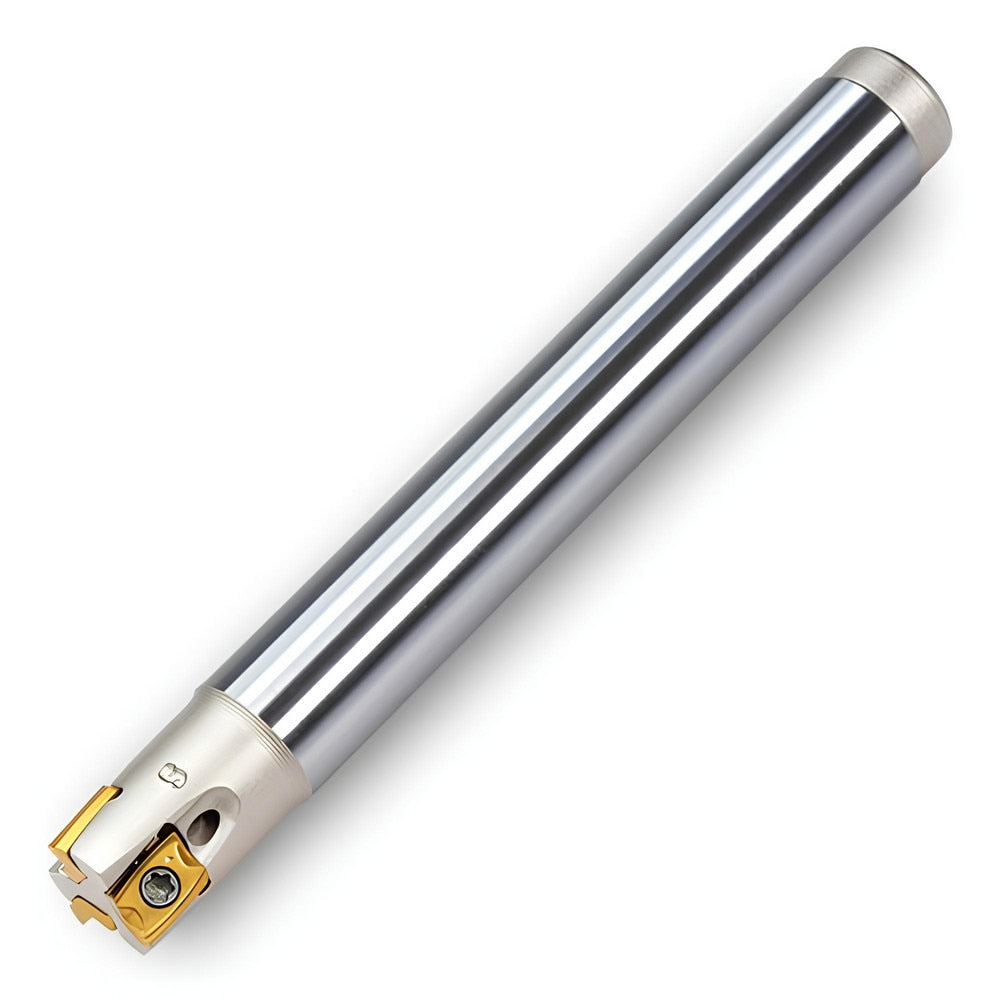

Brand: Ingersoll Cutting Tools / Part #: 6342973
Item #: 13398367
Brand: Ingersoll Cutting Tools
Model #: 6342973
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.3750 |
| Minimum Cutting Diameter (Inch) | 3/8 |
| Maximum Cutting Diameter (Decimal Inch) | 0.3750 |
| Maximum Cutting Diameter (Inch) | 3/8 |
| Maximum Depth of Cut (mm) | 4.83 |
| Maximum Depth of Cut (Decimal Inch) | 0.1900 |
| Cutter Style | 12J1A |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Diameter (Inch) | 3/8 |
| Maximum Ramping Angle | 0 ? |
| Insert Holding Method | Screw |
| Overall Length (mm) | 63.5000 |
| Overall Length (Decimal Inch) | 2.5000 |
| Tool Material | Steel |
| Series | 12J1A |
| Flute Type | Spiral |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 1.9000 |
| Shank Length (mm) | 48.260 |
| Head Length (Decimal Inch) | 0.6000 |
| Head Length (mm) | 15.24 |
| Tool Application | Facing; Plunging; Shouldering; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Shoulder Square End Mill |
| Rake | Positive |
| Complete Insert Compatibility | UNKT0502..; FNxT0502.. |
| Insert Compatibility | UNKT0502..; FNxT0502.. |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| Manufacturers Catalog Number | 12J1A-03006R8R01 |
| Usable Length (mm) | 15.240 |
| Number Of Flutes | 3 |
| Usable Length (Decimal Inch) | 0.6000 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
