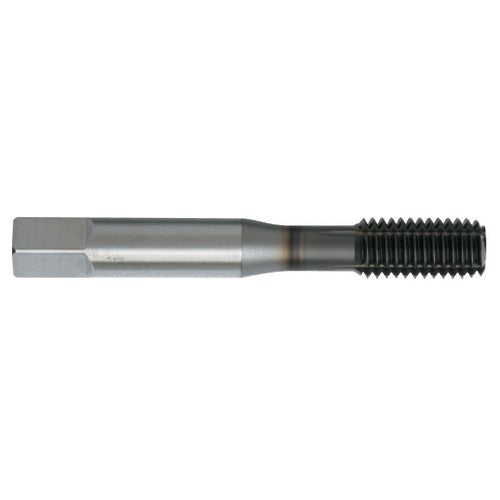

12-1.75; Bottoming; D10; DLC ROL Form Tap
Item #: NT1091047
Brand: Nachi America Inc
Model #: 91047
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Chamfer | 1.5P |
| Thread Diameter Size (TDZ) | M12 |
| Special Feature | High Performance |
| Thread Pitch (TP) | 1.75 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 85.725 mm |
| Flute Type | Fluteless |
| Thread Cutting Part Length (THL) | 24.9936 mm |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 9.3218 mm |
| Cutting Edge Material | HSSE-V |
| Flute Count (NOF) | 0 |
| Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | D10 |
| Product_Description | DLC Rol Form Tap |
| Coating | Diamond |
| Thread Size | M12 × 1.75 |
| Helix Angle | CW |
