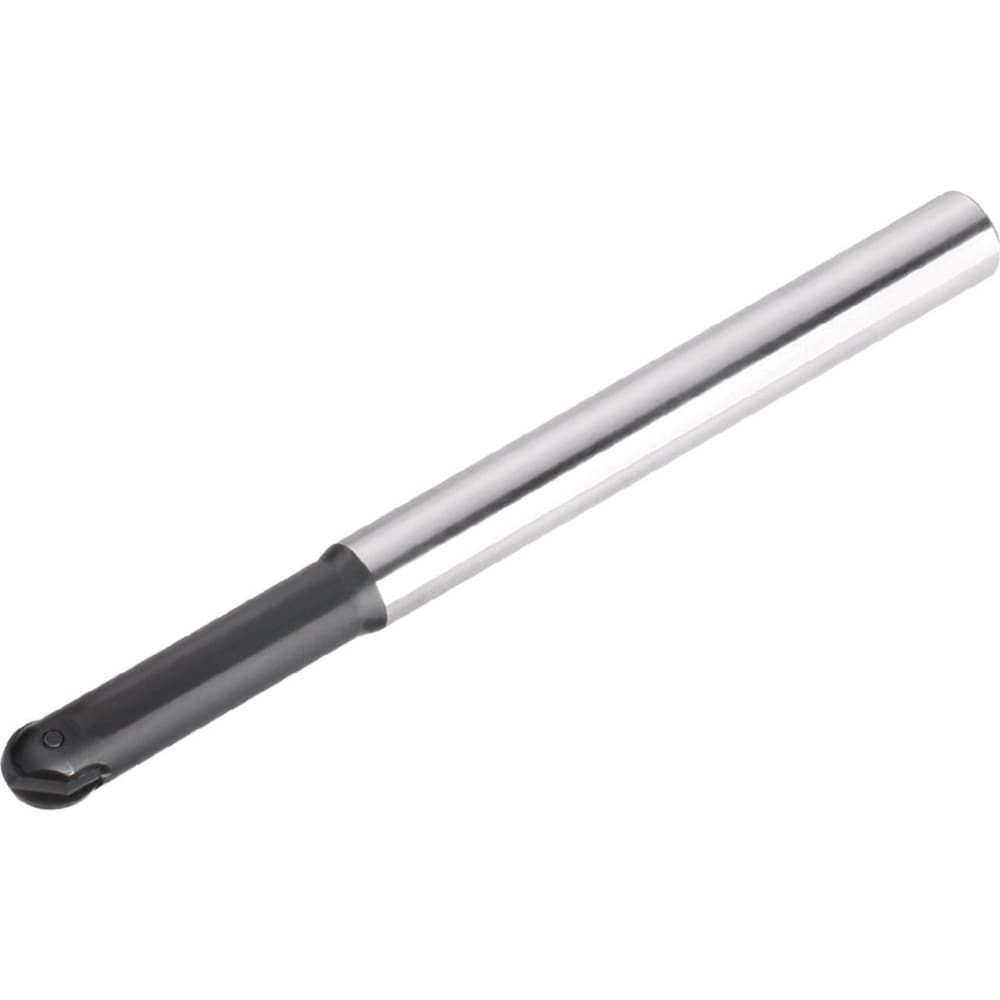

Brand: Widia / Part #: 2639139
Item #: 18979831
Brand: Widia
Model #: 2639139
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Tool Material | Steel |
| Maximum Depth of Cut (Inch) | 1/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Maximum Ramping Angle | 0 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw |
| Compatible Insert Style | M270B.. |
| Compatible Insert Size Code | 0500 |
| Toolholder Style | M270 |
| Tapered Neck | No |
| Overall Length (Inch) | 5-3/4 |
| Overall Length (Decimal Inch) | 5.7500 |
| Series | M270 |
| Head Length (Decimal Inch) | 2.0000 |
| Maximum RPM | 55000 |
| Tool Application | Profile Milling; Semi-Finishing; Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 2 |
| Coolant Through | No |
| Number Of Inserts | 1 |
