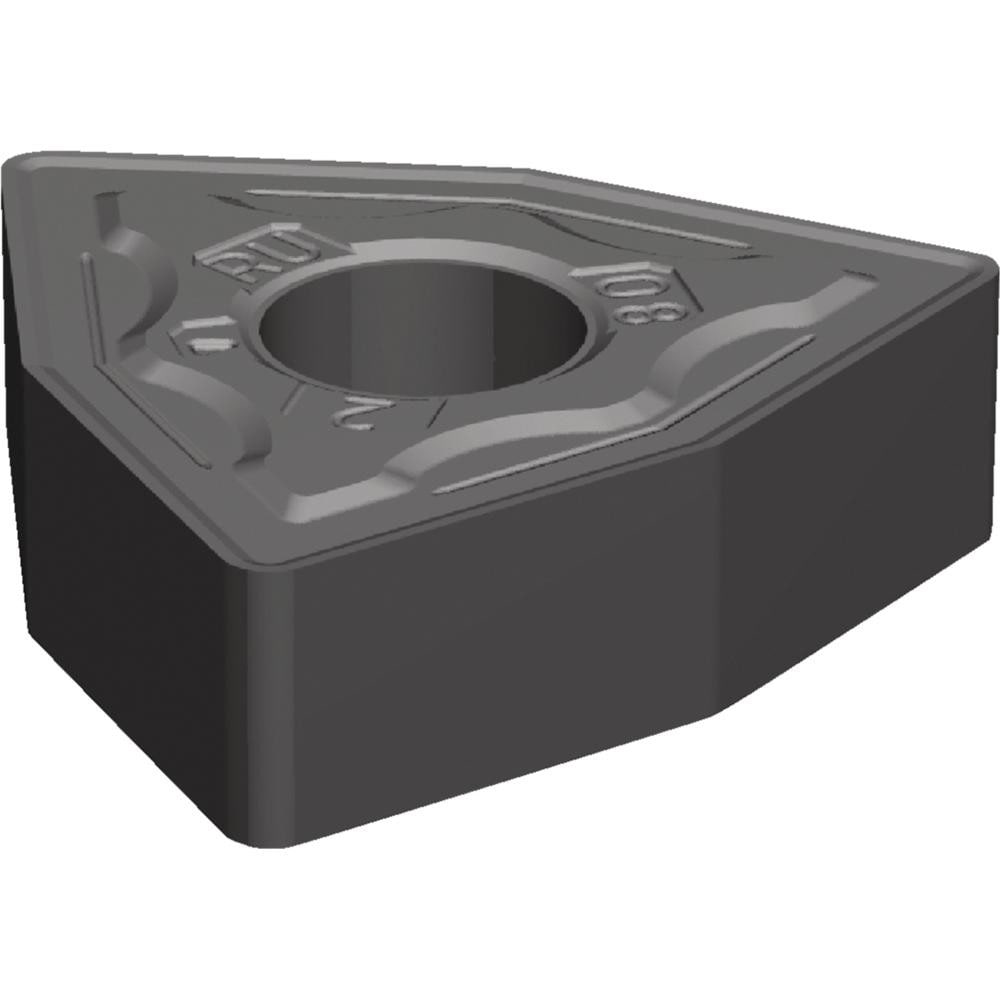

Brand: Widia / Part #: 6696886

Brand: Widia / Part #: 6696886


Item #: 96210497
Brand: Widia
Model #: 6696886

Product Specifications

Insert Style WNMG
Insert Shape Code W
Insert Size Code 432
Insert Shape Trigon
Coating/Finish TiCN; TiN; ZrCN; Al2O3
Manufacturer Grade WP15CT
Corner Radius (Decimal Inch) 0.0315
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2031
Maximum Depth of Cut (Decimal Inch) 0.1710
Inscribed Circle (Decimal Inch) 0.5000
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code M
Included Angle 80.00
Relief Angle 0.000
Series WNMG
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.3420
Number Of Cutting Edges 6
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Secondary Workpiece Material Cast Iron
Secondary Workpiece Material Code K
Ansi Code WNMG432RU
Iso Code WNMG080408RU
Manufacturers Catalog Number WNMG432RU
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker RU
Style WNMG
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$7.34
