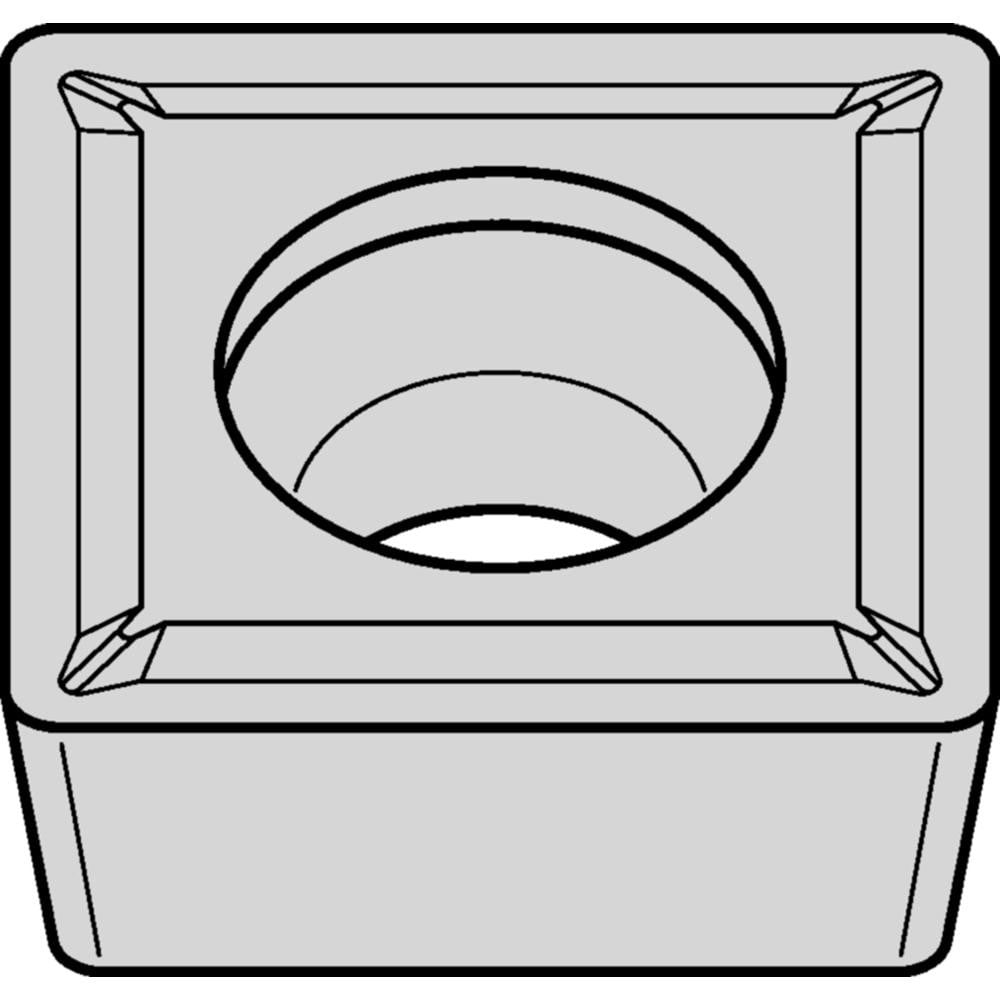

Brand: Widia / Part #: 4166399

Brand: Widia / Part #: 4166399


Item #: 95690574
Brand: Widia
Model #: 4166399

Product Specifications

Insert Style SCMT
Insert Shape Code S
Insert Size Code 3252
Insert Shape Square
Coating/Finish TiCN; TiN; Al2O3
Manufacturer Grade TN20P
Corner Radius (Decimal Inch) 0.0315
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1732
Maximum Depth of Cut (Decimal Inch) 0.1875
Inscribed Circle (Decimal Inch) 0.3750
Insert Holding Method Screw
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1563
Clearance Code C
Tolerance Code M
Included Angle 90.00
Relief Angle 7.000
Series SCMT
Coating Process MTCVD
Rake Positive
Wiper Edge No
Insert Length (Decimal Inch) 0.3750
Number Of Cutting Edges 4
Secondary Workpiece Material Cast Iron; Steel
Secondary Workpiece Material Code P; K
Ansi Code SCMT32521P
Iso Code SCMT09T3081P
Manufacturers Catalog Number SCMT32521P
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker 1P
Style SCMT
Width (Decimal Inch - 4 Decimals) 0.3750
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$8.13
