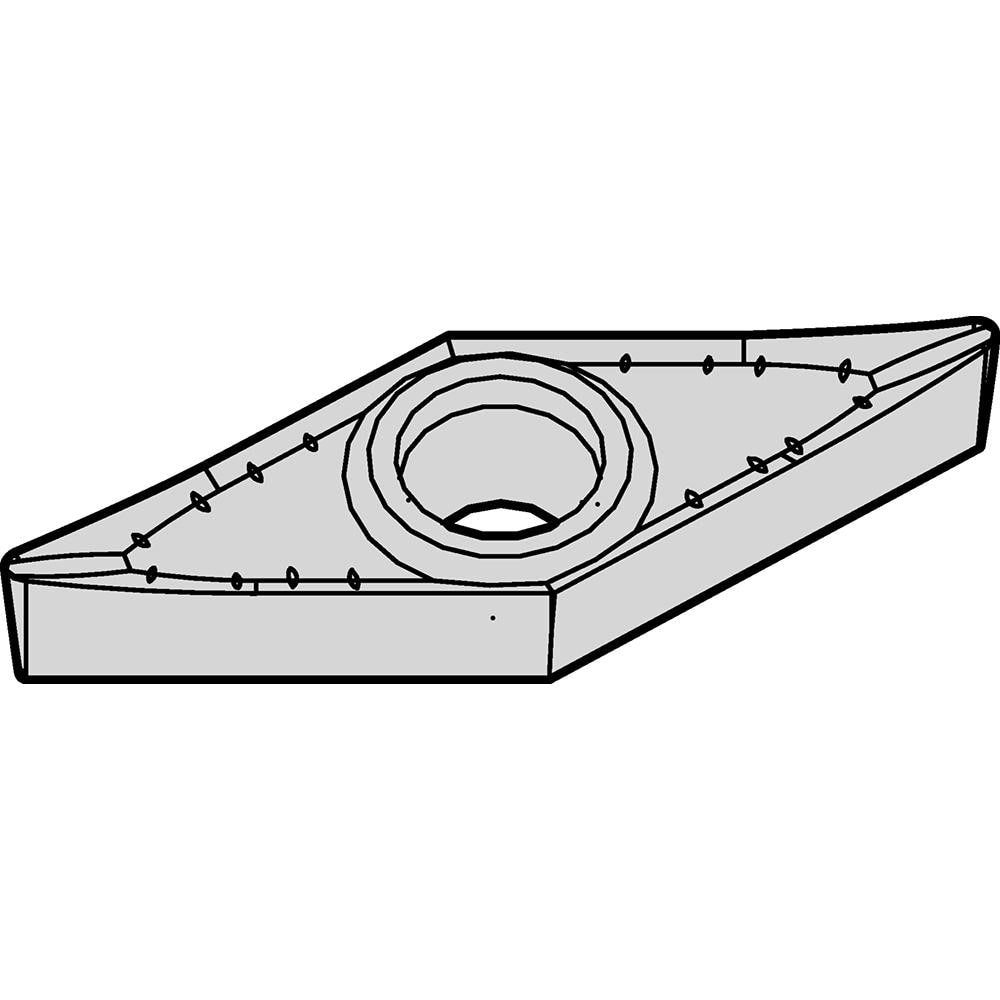

Brand: Widia / Part #: 2022487

Brand: Widia / Part #: 2022487


Item #: 95267522
Brand: Widia
Model #: 2022487

Product Specifications

Insert Style VCGT
Insert Shape Code V
Insert Size Code 332
Insert Shape Diamond
Coating/Finish TiAlN; Al2O3
Manufacturer Grade HCK10
Corner Radius (Decimal Inch) 0.0315
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1732
Maximum Depth of Cut (Decimal Inch) 0.3269
Inscribed Circle (Decimal Inch) 0.3750
Insert Holding Method Screw
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code C
Tolerance Code G
Included Angle 35.00
Relief Angle 7.000
Series VCGT
Coating Process PVD
Rake Positive
Wiper Edge No
Insert Length (Decimal Inch) 0.6538
Number Of Cutting Edges 2
Primary Workpiece Material Non-Ferrous Metal
Primary Workpiece Material Code N
Ansi Code VCGT332AL3
Iso Code VCGT160408AL3
Manufacturers Catalog Number VCGT332AL3
Cutting Direction Neutral
Coating Classification PVD
Chip Breaker AL3
Style VCGT
Width (Decimal Inch - 4 Decimals) 0.3750
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$17.60
