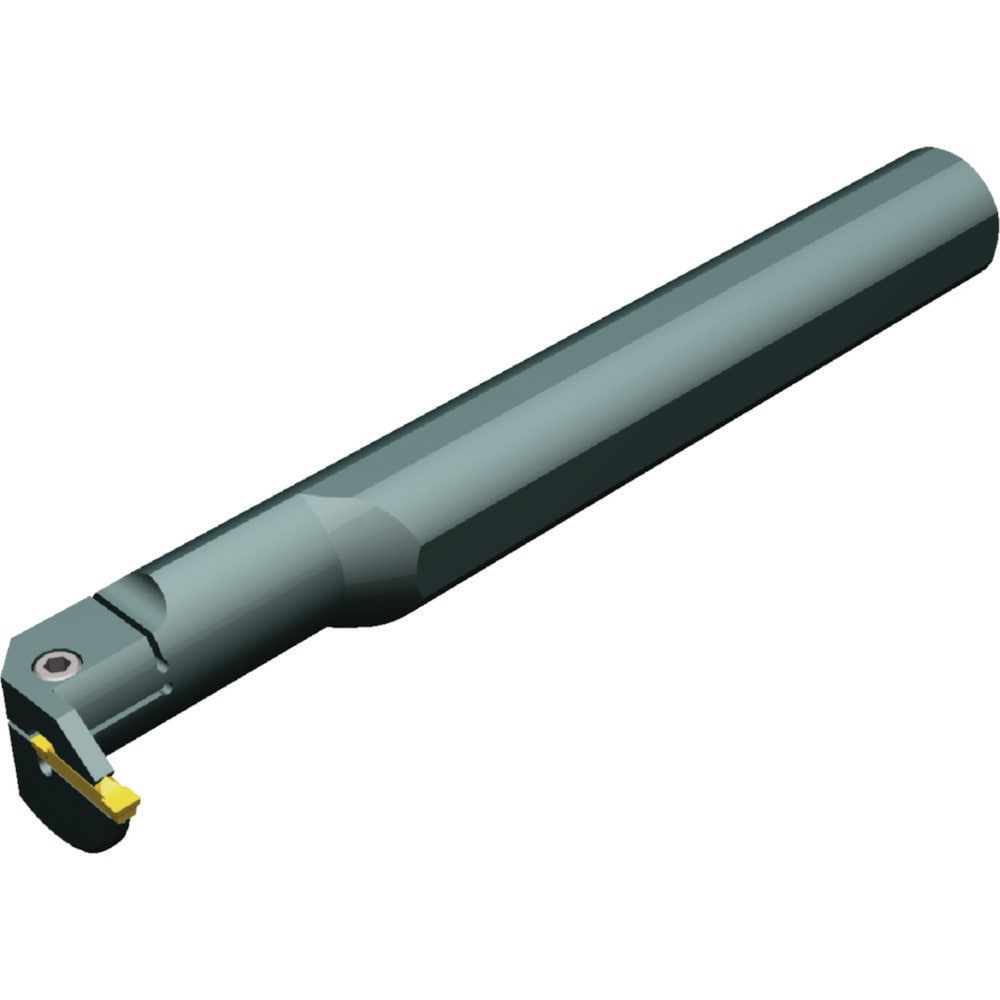

Brand: Widia / Part #: 5423878
Item #: 97976302
Brand: Widia
Model #: 5423878
Product Specifications
| Internal or External | Internal |
| Toolholder Type | Internal Grooving |
| Insert Seat Size | 5 |
| Hand of Holder | Right Hand |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (mm) | 19.00 |
| Minimum Groove Width (mm) | 5.00 |
| Maximum Groove Width (mm) | 5.00 |
| Toolholder Style | WMTER |
| Insert Holding Method | Screw |
| Insert Compatibility | WMTS500M5P03PT |
| Compatible Insert Size Code | 5 |
| Shank Width/Diameter (mm) | 32.00 |
| Shank Height (mm) | 0.00 |
| Series | WMT |
| Shank Length (mm) | 185.600 |
| Overall Length (mm) | 250.0000 |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving |
| Back of Bar to Cutting Edge (mm) | 45.00 |
| Center to Cutting Edge (mm) | 29.00 |
| Minimum Hole Diameter (mm) | 47.00 |
| Head Length (mm) | 64.40 |
| Primary Workpiece Material | Universal |
| Vibration Dampening | No |
| Coolant Hole Diameter (mm) | 6.40 |
| Coolant Hole Thread Size | 1/4-18 NPT |
| Mount Type | Shank |
| Manufacturers Catalog Number | A32SWMTER0519M |
| Toolholder Material | Steel |
| Insert Hand | Neutral |
| Complete Insert Compatibility | WMTS500M5P03PT |
| Coolant Through | Yes |
| Minimum Bore Diameter (mm) | 47.000 |
| Maximum Bore Depth (mm) | 64.40 |
