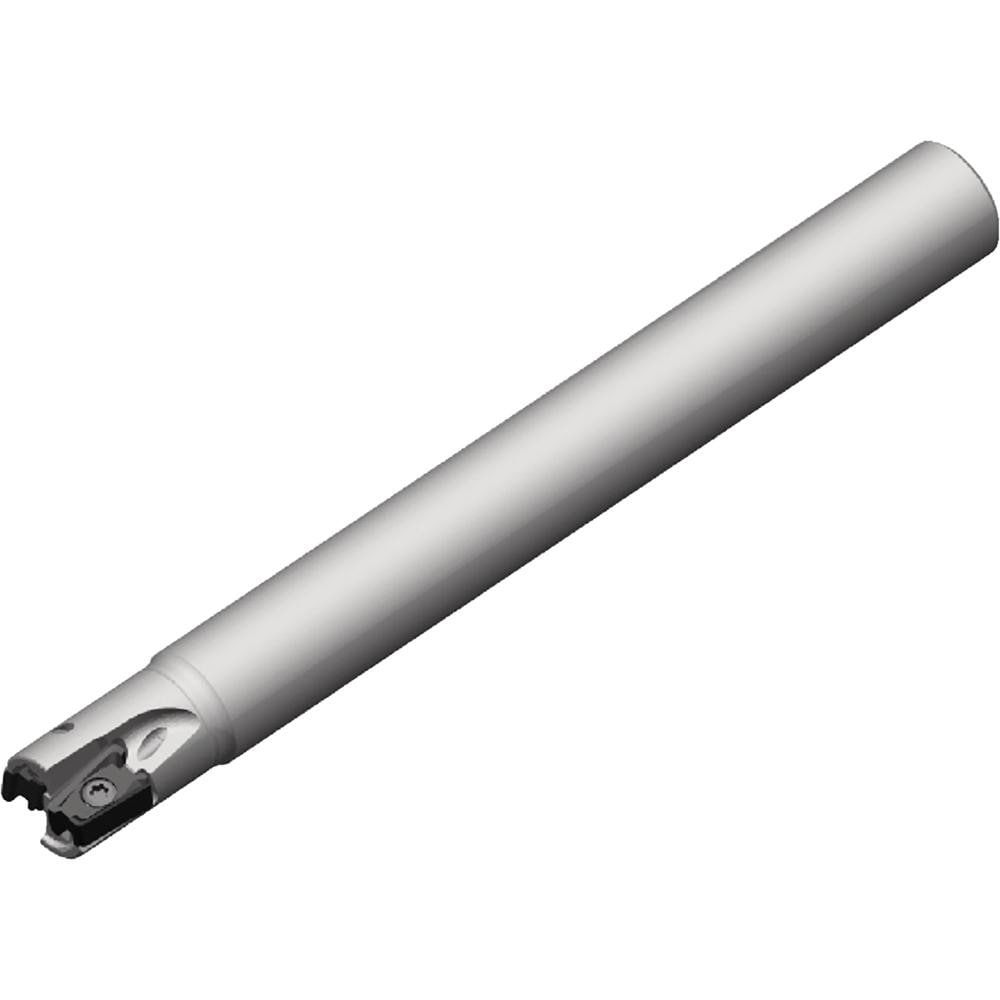

Brand: Widia / Part #: 6425503
Item #: 97476873
Brand: Widia
Model #: 6425503
Product Specifications
| Minimum Cutting Diameter (mm) | 16.00 |
| Maximum Cutting Diameter (mm) | 16.00 |
| Maximum Depth of Cut (mm) | 25.00 |
| Cutter Style | VSM |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 16.0000 |
| Maximum Ramping Angle | 0 ? |
| Insert Holding Method | Screw |
| Shank Taper Size | None |
| Overall Length (mm) | 150.0000 |
| Tool Material | Steel |
| Series | VSM490-10 |
| Flute Type | Spiral |
| Lead Angle | 90 |
| Shank Length (Inch) | 4-59/64 |
| Shank Length (mm) | 125.000 |
| Head Length (mm) | 25.00 |
| Maximum RPM | 48000.000 |
| Tool Application | Milling; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Shoulder Square End Mill |
| Coolant Hole Diameter (mm) | 4.00 |
| Rake | Negative (Axial); Negative (Radial) |
| Complete Insert Compatibility | XNGU10.. |
| Insert Compatibility | XNGU10.. |
| Hand of Holder | Right Hand |
| Rake Angle | -23.70 ? (Radial);-8.00 ? (Axial) |
| Multi-Use Tool | Yes |
| ISO Number | VSM490D016Z02A16XN10L150 |
| Manufacturers Catalog Number | VSM490D016Z02A16XN10L150 |
| Usable Length (mm) | 25.000 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
