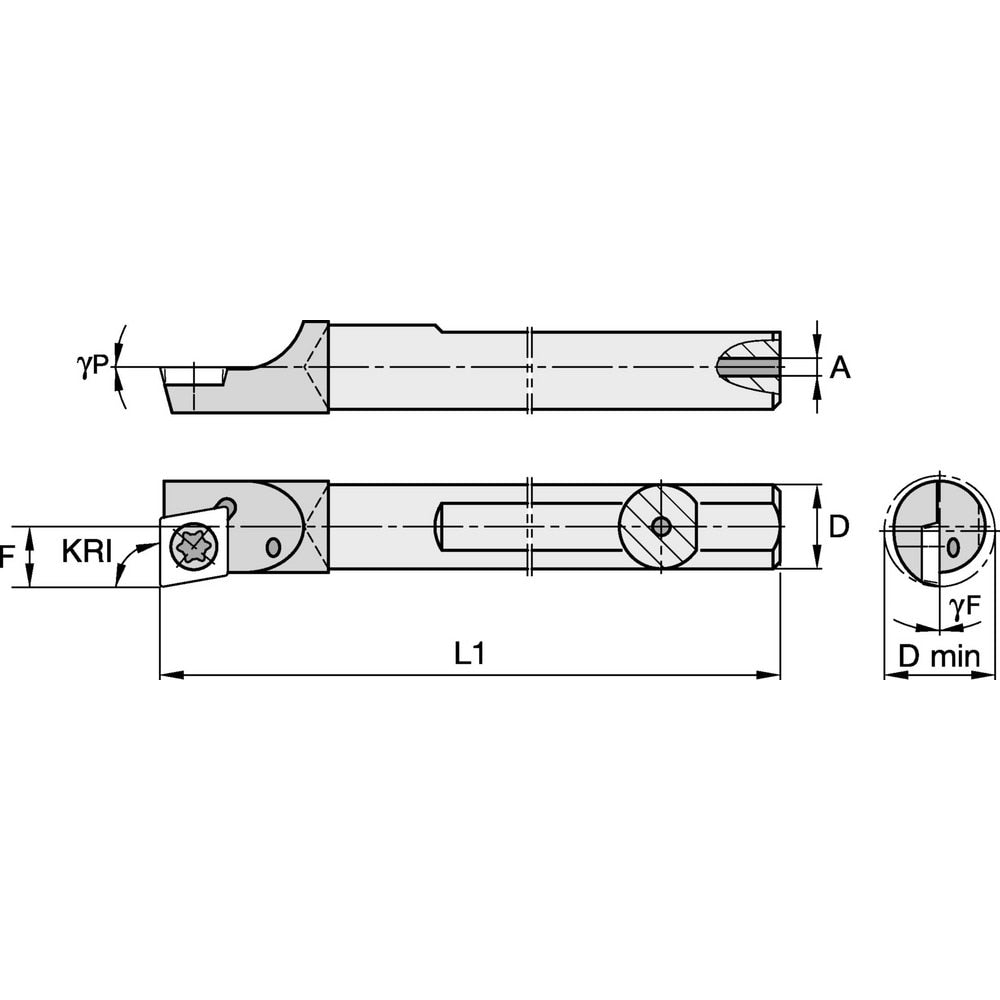

Brand: Widia / Part #: 2831324
Item #: 02771053
Brand: Widia
Model #: 2831324
Product Specifications
| Minimum Bore Diameter (mm) | 4.570 |
| Maximum Bore Depth (mm) | 28.00 |
| Toolholder Style | CCBM |
| Tool Material | Carbide |
| Shank Diameter (mm) | 4.0000 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 152.0000 |
| Compatible Insert Size Code | CD..S4T002 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Rake Angle | 0.000 |
| Lead Angle | 97.000 |
| Series | CCBM |
| Insert Inscribed Circle (Inch) | 5/32 |
| Compatible Insert Thickness (Decimal Inch) | 0.0400 |
| Compatible Insert Thickness (mm) | 1.02 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (mm) | 4.41 |
| Center to Cutting Edge (mm) | 2.41 |
| Primary Workpiece Material | Universal |
| Multi-Use Application | Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Thickness (Decimal Inch) | 0.0400 |
| Coolant Hole Diameter (mm) | 1.02 |
| Number of Inserts Included in Order | 0 |
| Manufacturers Catalog Number | CCBM41527R |
| Radial Rake | 0 |
| Neck Diameter (mm) | 4.190 |
| Coolant Through | Yes |
