Brand: Ingersoll Cutting Tools / Part #: 2925871
Item #: 96743588
Brand: Ingersoll Cutting Tools
Model #: 2925871
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.6250 |
| Minimum Cutting Diameter (Inch) | 5/8 |
| Maximum Cutting Diameter (Decimal Inch) | 0.6250 |
| Maximum Cutting Diameter (Inch) | 5/8 |
| Maximum Depth of Cut (mm) | 3.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.1300 |
| Cutter Style | 1KJ1B |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Maximum Ramping Angle | 1.6 ? |
| Insert Holding Method | Screw |
| Overall Length (mm) | 88.9000 |
| Overall Length (Decimal Inch) | 3.5000 |
| Tool Material | Steel |
| Series | 1KJ1B |
| Flute Type | Spiral |
| Lead Angle | 90 |
| Shank Length (Inch) | 2-1/2 |
| Shank Length (Decimal Inch) | 2.5000 |
| Head Length (Inch) | 1 |
| Head Length (Decimal Inch) | 1.0000 |
| Tool Application | Facing; Shouldering; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |

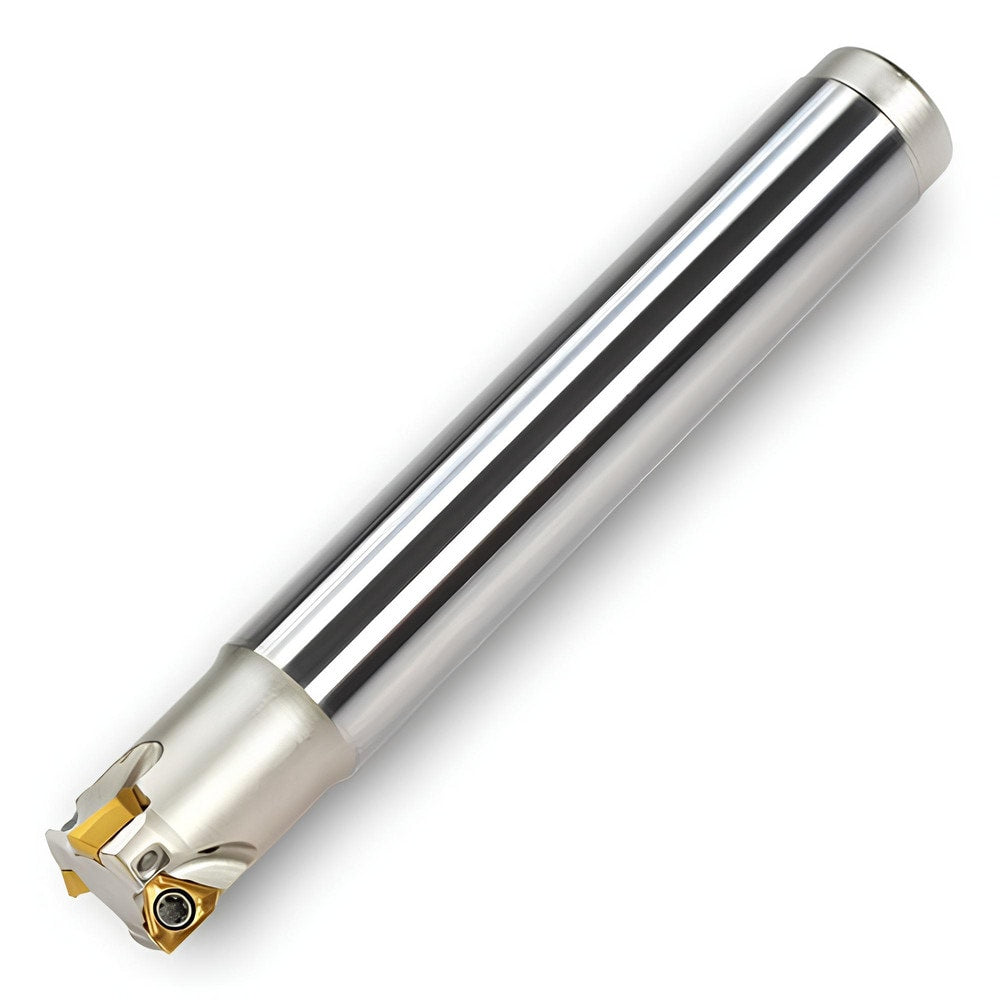

| End Mill Type | Shoulder Square End Mill |
| Rake | Positive |
| Complete Insert Compatibility | THLS0402.. |
| Insert Compatibility | THLS0402.. |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| Manufacturers Catalog Number | 1KJ1B-06010S6R01 |
| Usable Length (mm) | 25.400 |
| Number Of Flutes | 4 |
| Usable Length (Decimal Inch) | 1.0000 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Yes |
