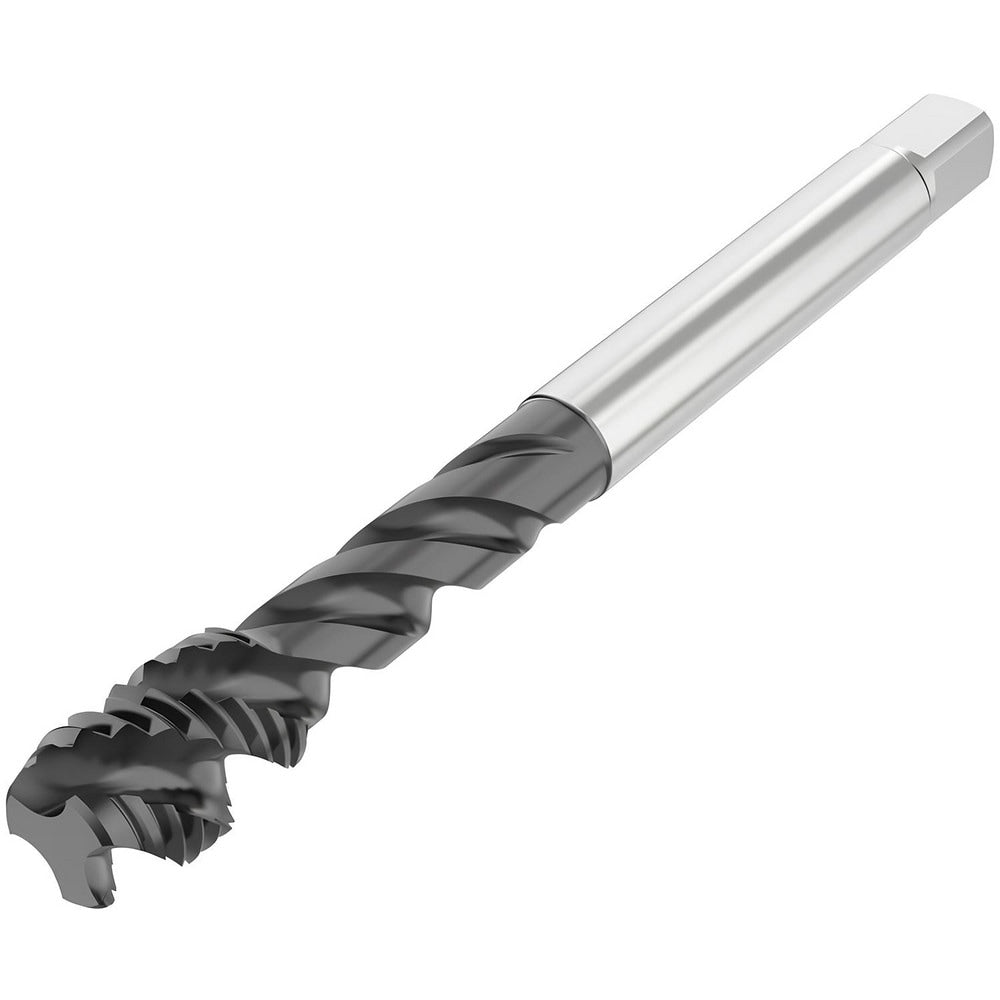

Brand: Seco / Part #: 10139000
Item #: 98627318
Brand: Seco
Model #: 10139000
Product Specifications
| Thread Size (mm) | M14 |
| Chamfer | Bottoming |
| Class Of Fit | 6HX |
| Number Of Flutes | 4 |
| Material | HSS-E-PM |
| Threads per Inch | 13 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | HL |
| Thread Depth (mm) | 20.00 |
| Coolant Through | No |
| Thread Length (mm) | 20.00 |
| Overall Length (mm) | 110.0000 |
| Thread Pitch (Decimal Inch) | 0.0787 |
| Thread Pitch (mm) | 2.00 |
| Thread Pitch (Inch) | 5/64 |
| Thread Standard | Metric |
| Helix Angle | 45.00 |
| Oversize | No |
| Application | Blind Hole Threading |
| Shank Diameter (mm) | 11.0000 |
| Neck Length (mm) | 61.00 |
| Tapping Depth (mm) | 81.00 |
| Flute Style | Spiral |
| Material Application | Non-Ferrous Metal; Superalloy; Stainless Steel; Cast Iron; Steel |
| Series | T34 |
| Shank Length (mm) | 29.000 |
