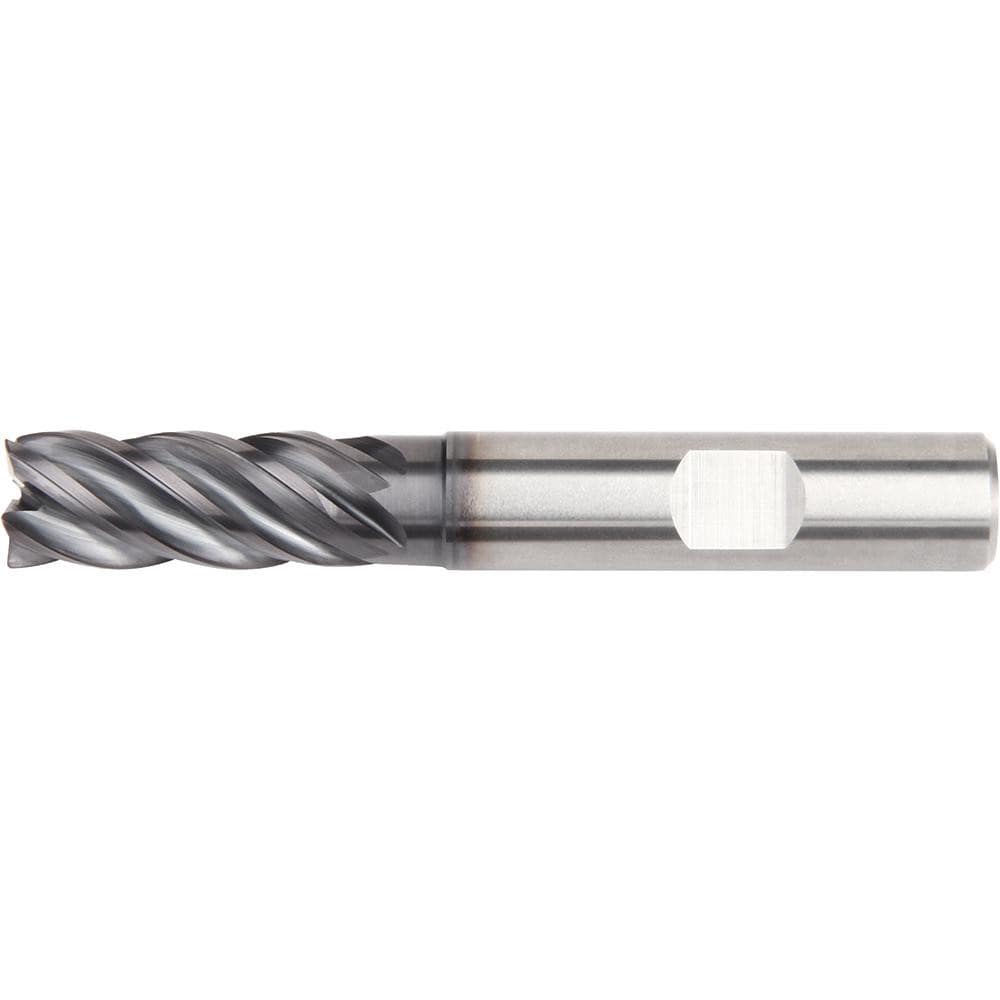

Brand: Widia / Part #: 5599136
Item #: 34038869
Brand: Widia
Model #: 5599136
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6299 |
| Mill Diameter (mm) | 16.00 |
| Number Of Flutes | 5 |
| Length of Cut (mm) | 32.0000 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Finish/Coating | AlTiN |
| Shank Diameter (mm) | 16.0000 |
| Helix Angle | 38 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | Yes |
| Extended Reach | Yes |
| Overall Length (mm) | 100.0000 |
| Shank Type | Safe-Lock |
| Length of Cut (Decimal Inch) | 1.2598 |
| Material Grade | WS15PE |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Overall Length (Decimal Inch) | 3.9370 |
| Flute Direction | Right Hand |
| Flute Type | Variable Index |
| Helix Style | Medium |
| Length Type | Regular |
| Neck Diameter (Decimal Inch) | 0.5921 |
| Neck Diameter (mm) | 15.040 |
| Reach Length (Decimal Inch) | 1.8898 |
| Reach Length (mm) | 48.00 |
| Through Coolant | No |
| Series | 57NE |
