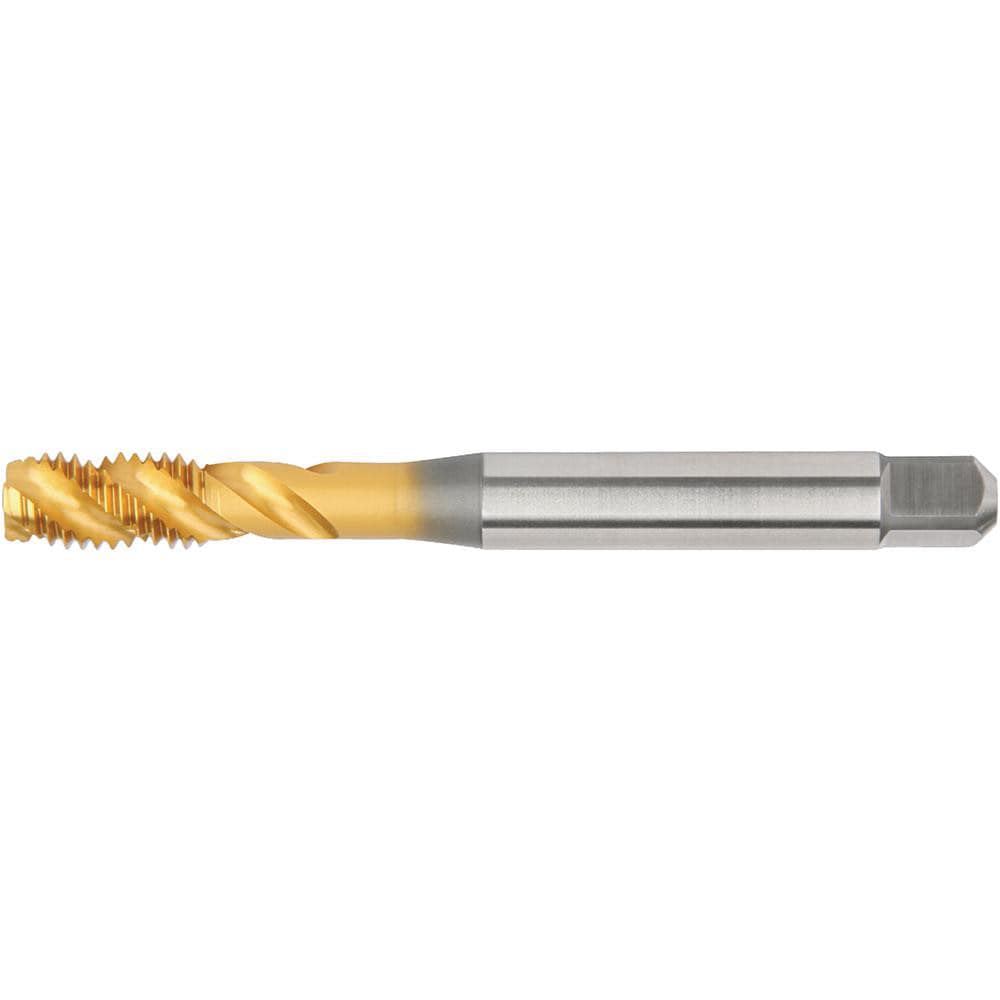

Brand: Widia / Part #: 6172953
Item #: 97443279
Brand: Widia
Model #: 6172953
Product Specifications
| Thread Size (Inch) | 1-1/4-12 |
| Chamfer | Modified Bottoming |
| Thread Limit | H6 |
| Class Of Fit | 2B |
| Number Of Flutes | 5 |
| Material | High Speed Steel |
| Threads per Inch | 12 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | Black Oxide |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.8700 |
| Overall Length (Decimal Inch) | 5.9100 |
| Thread Depth (Decimal Inch) | 2.6300 |
| Thread Pitch (Decimal Inch) | 0.0833 |
| Thread Standard | UNF |
| Material Grade | WP49EG |
| Shank Diameter (Decimal Inch) | 0.8661 |
| Square Size (Decimal Inch) | 0.7090 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VTSFT-TC |
