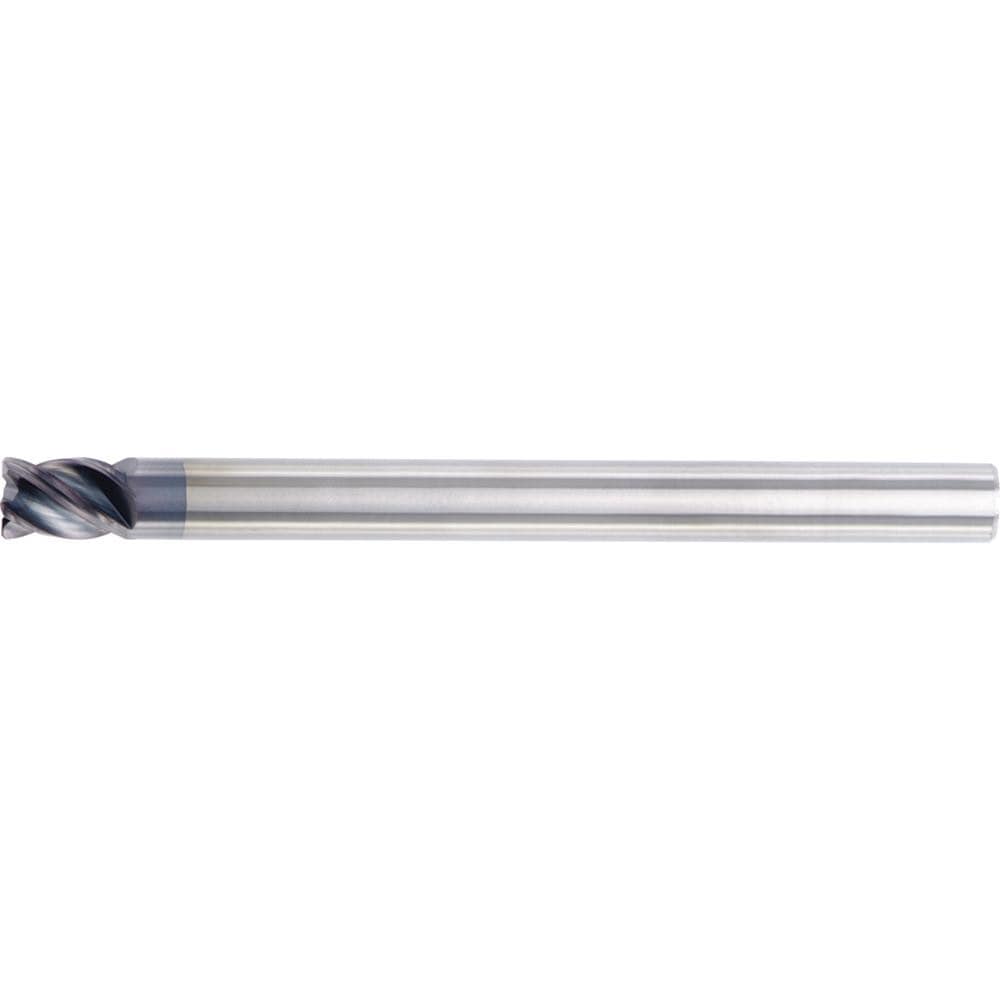

Brand: Widia / Part #: 2836946
Item #: 83935130
Brand: Widia
Model #: 2836946
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Chamfer Width (Decimal Inch) | 0.0200 |
| Coating/Finish | TiAlN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 4 |
| Single Or Double End | Single |
| Overall Length (Inch) | 5 |
| Length of Cut (Inch) | 1 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Flute Direction | Right Hand |
| Helix Angle | 38 |
| Overall Length (Decimal Inch) | 5.0000 |
| Chipbreaker | No |
| Chamfer Angle | 45.000 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
| Length Type | Regular |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Cylindrical |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Neck Diameter (Decimal Inch) | 0.0000 |
| Reach Length (Decimal Inch) | 1.0000 |
| Minimum Helix Angle | 38 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | S; H; K; M |
| Secondary Workpiece Material | High Temperature Alloy |
| Secondary Workpiece Material Code | S |
| Material Grade | TiAlN-LT |
| Series | 4VP5 |
| Coating Classification | PVD |
| Chamfer Length (Decimal Inch) | 0.0200 |
| Helix Style | Medium |
