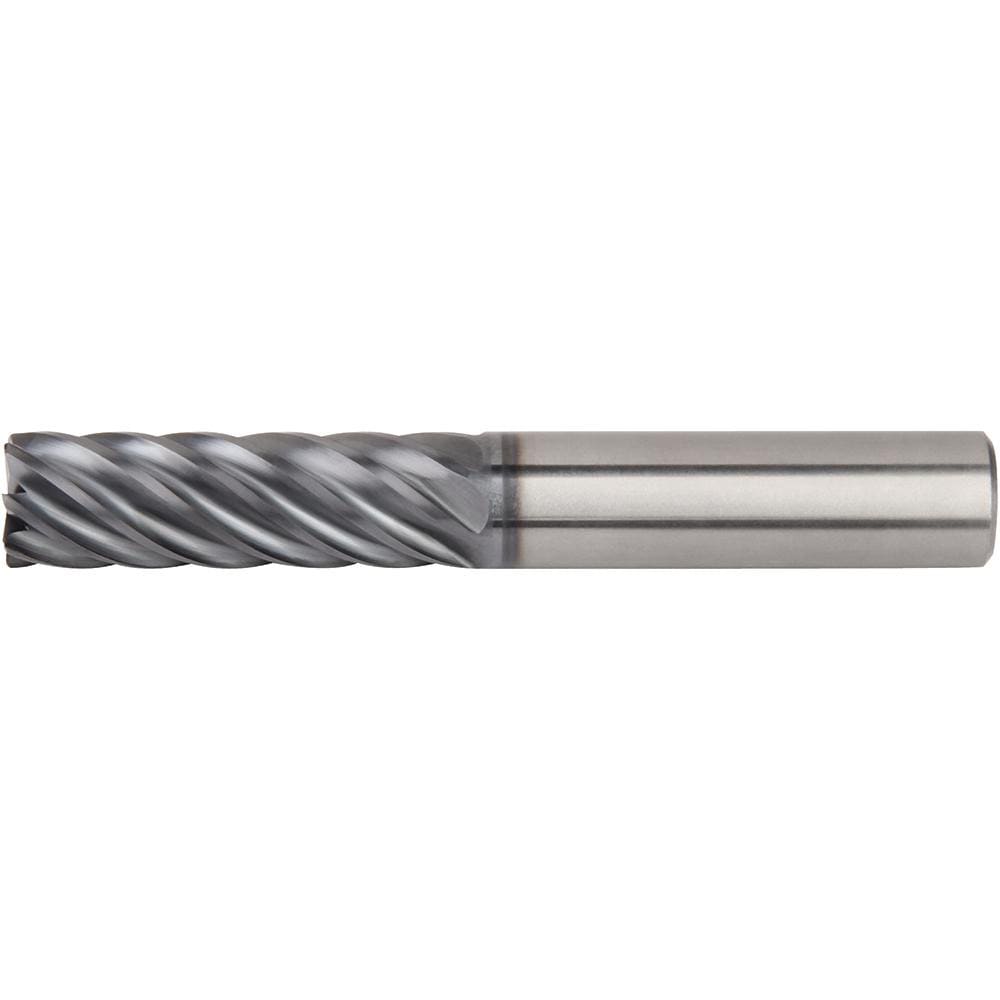

Brand: Widia / Part #: 5978110
Item #: 34046433
Brand: Widia
Model #: 5978110
Product Specifications
| Mill Diameter (mm) | 16.00 |
| Chamfer Width (mm) | 0.50 |
| Coating/Finish | AlTiN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 7 |
| Single Or Double End | Single |
| Overall Length (mm) | 141.00 |
| Length of Cut (mm) | 80.00 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Flute Direction | Right Hand |
| Chipbreaker | No |
| End Type | Single |
| Chamfer Angle | 45 |
| Length Type | Extra Long |
| Flute Type | Variable |
| Extended Reach | No |
| Shank Type | Safe-Lock |
| Centercutting | Yes |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 16.0000 |
| Shank Diameter (Inch) | 16 |
| Reach Length (mm) | 80.00 |
| Minimum Helix Angle | 38.00 |
| Maximum Helix Angle | 38.00 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; High Temperature Alloy; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Material Grade | WS15PE |
| Series | 772E |
