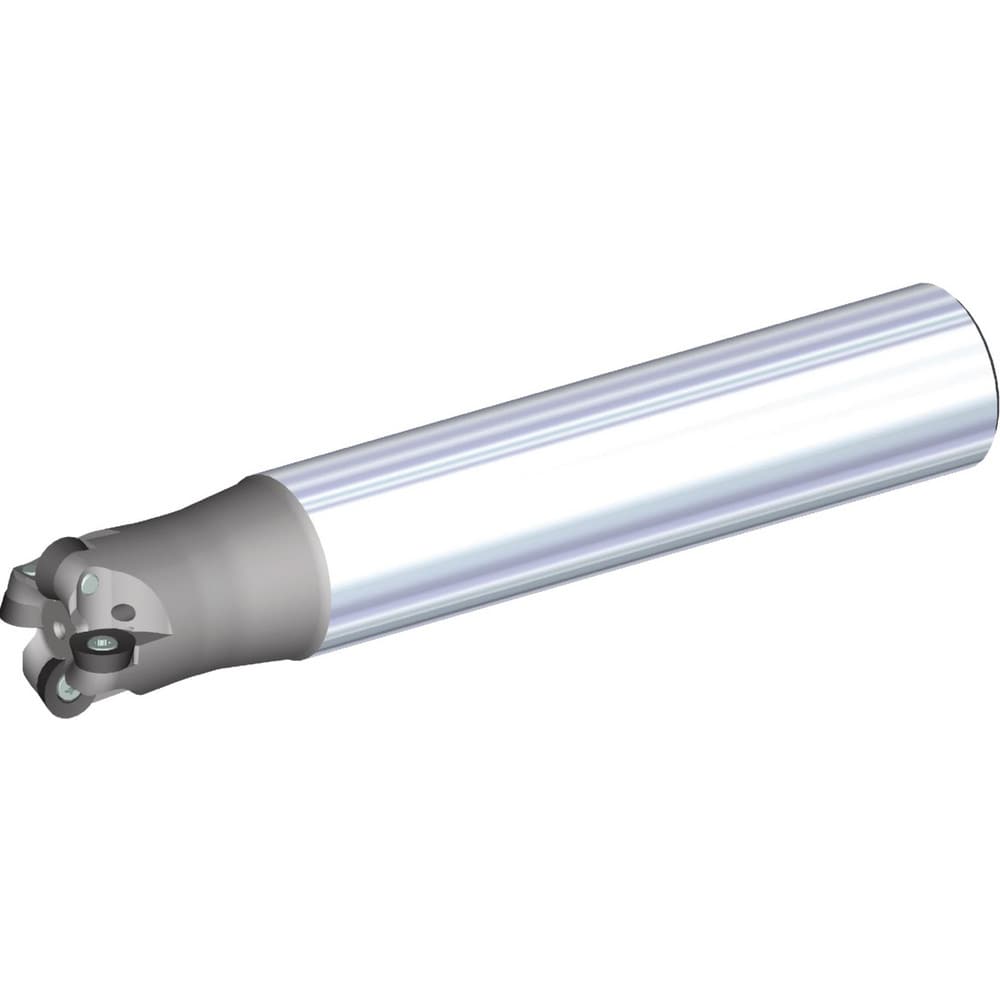

Brand: Widia / Part #: 3940707
Item #: 99733487
Brand: Widia
Model #: 3940707
Product Specifications
| Minimum Cutting Diameter (mm) | 12.00 |
| Maximum Cutting Diameter (mm) | 22.00 |
| Maximum Depth of Cut (mm) | 5.00 |
| Toolholder Style | M170 |
| Shank Type | Cylindrical |
| Shank Diameter | 0.7874 |
| Maximum Ramping Angle | 12 |
| Compatible Insert Style | RD.X |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 1003.. |
| Number Of Cutter Inserts | 2 |
| Overall Length (mm) | 160.0000 |
| Series | M170 |
| Flute Type | Straight |
| Maximum Rpm | 14400.000 |
| Shank Length (mm) | 120.000 |
| Functional Length (mm) | 160.00 |
| Head Length (mm) | 40.00 |
| Insert Diameter (mm) | 10.000 |
| Tool Application | Pocketing; Milling; Ramping; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
