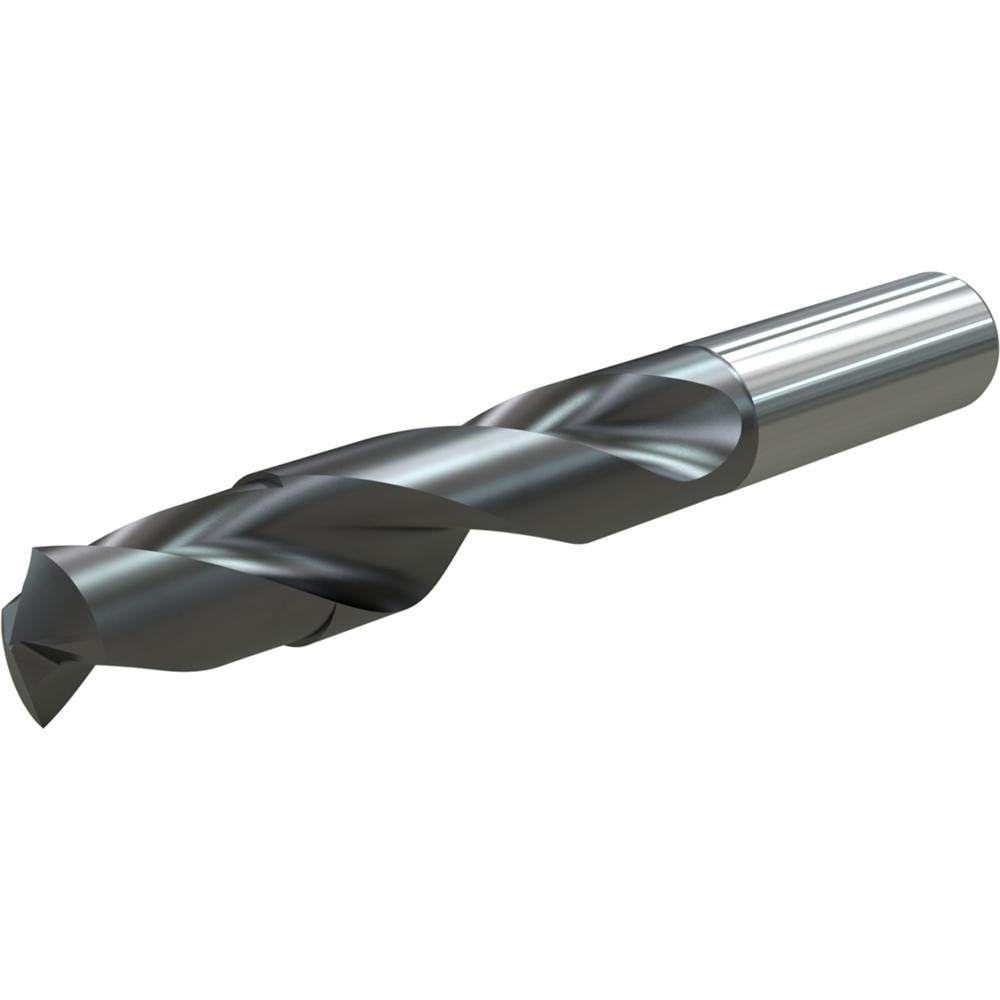

Brand: Widia / Part #: 4143034
Item #: 53498986
Brand: Widia
Model #: 4143034
Product Specifications
| Drill Bit Size (mm) | 15.50 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiAlN |
| Drill Point Angle (Degrees) | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Cylindrical |
| Number of Flutes | 2 |
| Overall Length (mm) | 133.0000 |
| Flute Length (mm) | 83.00 |
| Series | VDS402 |
| Tool Application | Drilling |
| Flute Length x Diamter Ratio | 4 |
| Flute By Diameter Ratio | 4xD |
| Shank Diameter (mm) | 16.0000 |
| Maximum Drilling Depth (mm) | 63.00 |
| Shank Length (mm) | 48.000 |
| Number of Flats | 2 |
| Drill Point Length (mm) | 2.68 |
| Drill Bit Diameter Tolerance | -0.018000 to 0.000000 mm |
| Tool Performance | General Purpose |
| Double Margin | No |
| Drill Bit Grade | WU25PD |
| Material Grade | WU25PD |
