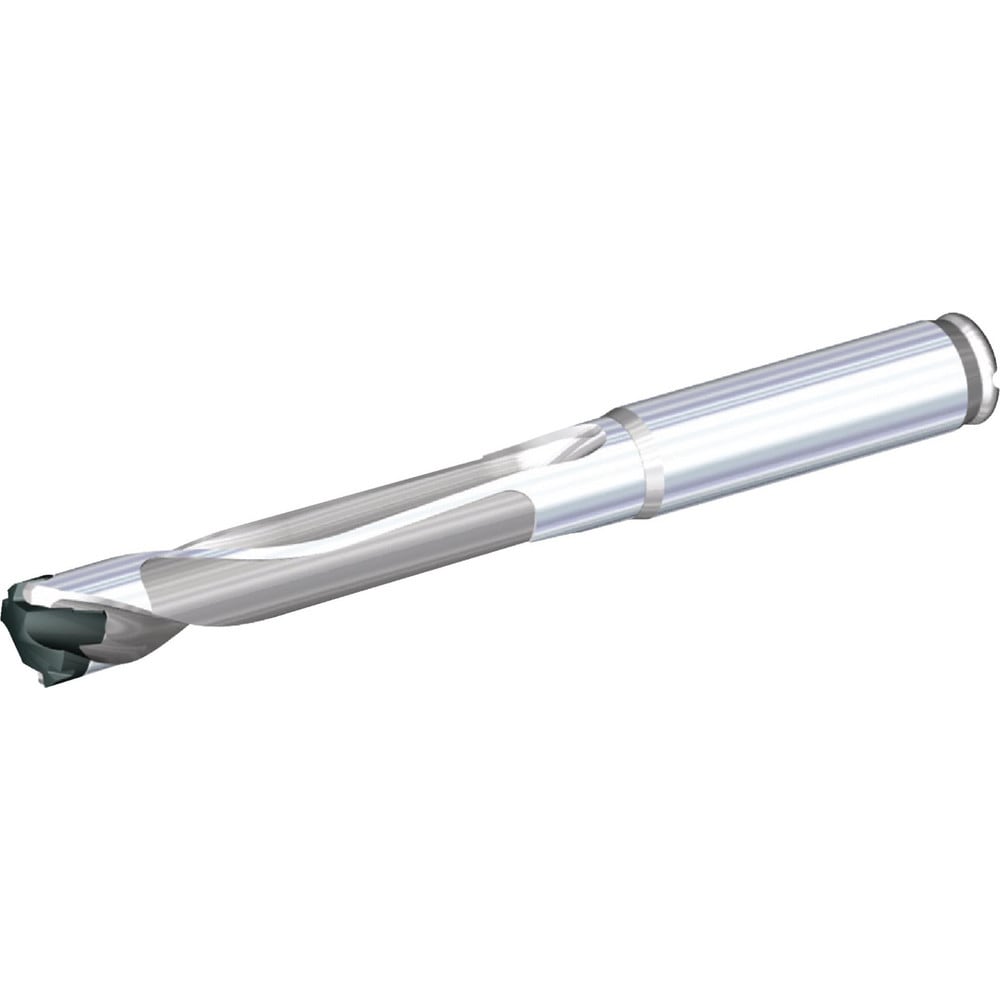

Brand: Widia / Part #: 3851569
Item #: 84251933
Brand: Widia
Model #: 3851569
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.5709 |
| Maximum Drill Diameter (Decimal Inch) | 0.5902 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.9500 |
| Shank Type | Cylindrical |
| Insert Style | TDM |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Seat Size | W23 |
| Tool Material | Steel |
| Compatible Insert Style | TDM |
| Compatible Insert Size Code | W23 |
| Overall Length (Decimal Inch) | 5.7500 |
| Overall Length (Inch) | 5-3/4 |
| Series | TDM1 |
| Toolholder Style | TDM1 |
| Flute Length (Decimal Inch) | 3.7200 |
| Body Length (Decimal Inch) | 3.7200 |
| Shank Length (Decimal Inch) | 1.9098 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Tip Length (Decimal Inch) | 0.1094 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 2 |
