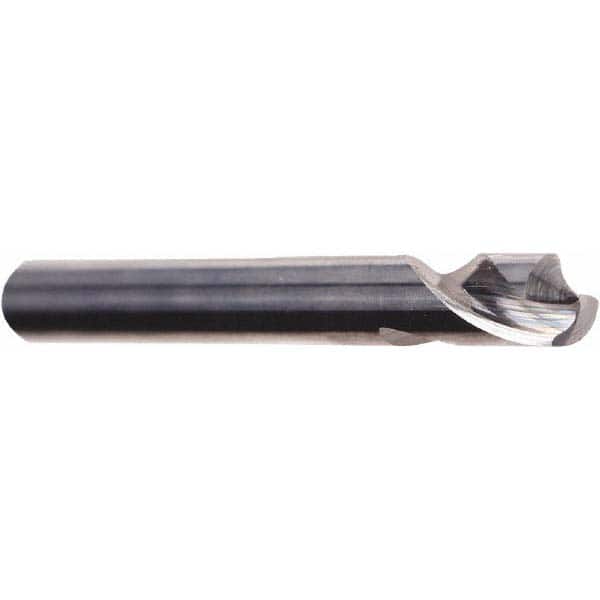

Emuge - 5/8" Body Diam, 120°, 4" OAL, Solid Carbide Spotting Drill
Item #: 46169173
Brand: Emuge
Model #: EFUT3200.1587
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Body Diameter (Inch) | 5/8 |
| Body Diameter (Decimal Inch) | 0.6250 |
| Drill Point Angle | 120 |
| Spotting Drill Material | Solid Carbide |
| Spotting Drill Finish/Coating | Bright |
| Overall Length (Inch) | 4 |
| Flute Length (Inch) | 1-1/4 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Drill Bit Grade | High Precision |
| Number of Flutes | 2 |
| Length Designation | Standard |
| Cutting Direction | Right Hand |
| Tool Application | Spot Drilling |
| Insertable Cutter Head | No |
| Tapered | No |
| Material Application | Steel |
| Material Application2 | Alloy Steel |
