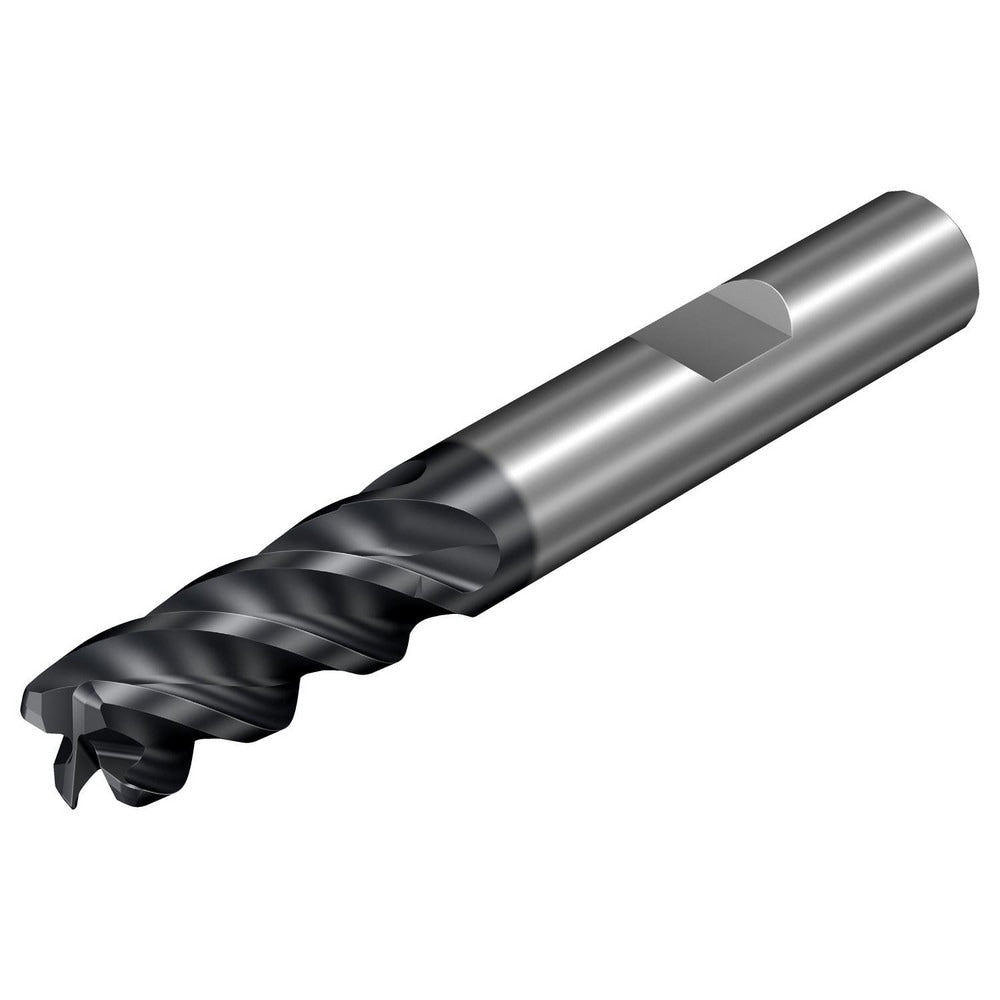

Brand: Sandvik Coromant / Part #: 8351916
Item #: 67683292
Brand: Sandvik Coromant
Model #: 8351916
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Coating/Finish | TiAlCrSiN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 4 |
| Single Or Double End | Single |
| Length of Cut (Inch) | 1-5/8 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Flute Direction | Right Hand |
| Helix Angle | 42 |
| Overall Length (Decimal Inch) | 4.3150 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Type | Standard |
| Extended Reach | No |
| Shank Type | Weldon |
| Centercutting | Yes |
| Material Removal Type | Roughing |
| Shank Diameter (Inch) | 3/4 |
| Minimum Helix Angle | 35 |
| Maximum Helix Angle | 45 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Series | CoroMill? Plura |
| Material Application | Cast Iron; Steel |
| Coating Classification | PVD |
| Helix Style | Variable |
| Manufacturers Catalog Number | 2S342-1905-076-PB P2BM |
