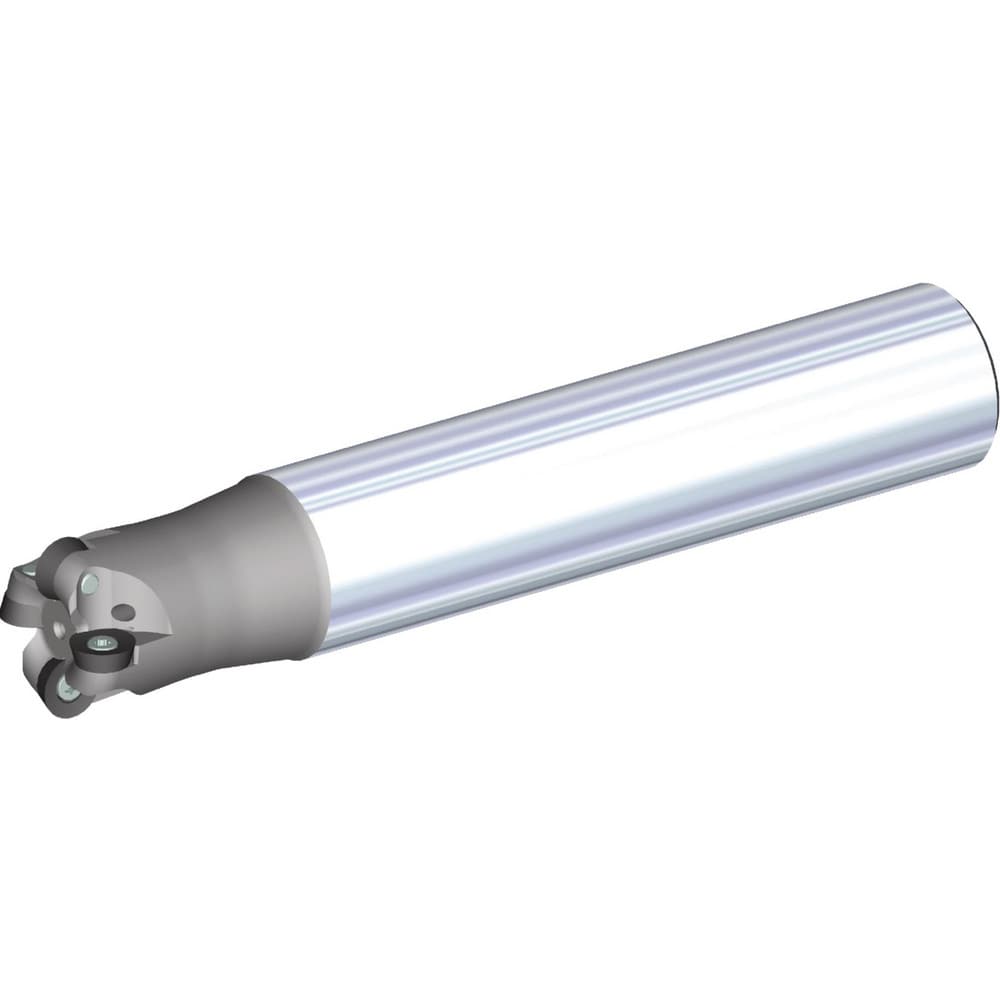

Brand: Widia / Part #: 3940705
Item #: 99734402
Brand: Widia
Model #: 3940705
Product Specifications
| Minimum Cutting Diameter (mm) | 10.00 |
| Maximum Cutting Diameter (mm) | 20.00 |
| Maximum Depth of Cut (mm) | 5.00 |
| Toolholder Style | M170 |
| Shank Type | Cylindrical |
| Shank Diameter | 0.9843 |
| Maximum Ramping Angle | 20 |
| Compatible Insert Style | RD.X |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 1003.. |
| Number Of Cutter Inserts | 2 |
| Overall Length (mm) | 160.0000 |
| Series | M170 |
| Flute Type | Straight |
| Maximum Rpm | 15900.000 |
| Shank Length (mm) | 80.000 |
| Functional Length (mm) | 160.00 |
| Head Length (mm) | 80.00 |
| Insert Diameter (mm) | 10.000 |
| Tool Application | Pocketing; Milling; Ramping; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
