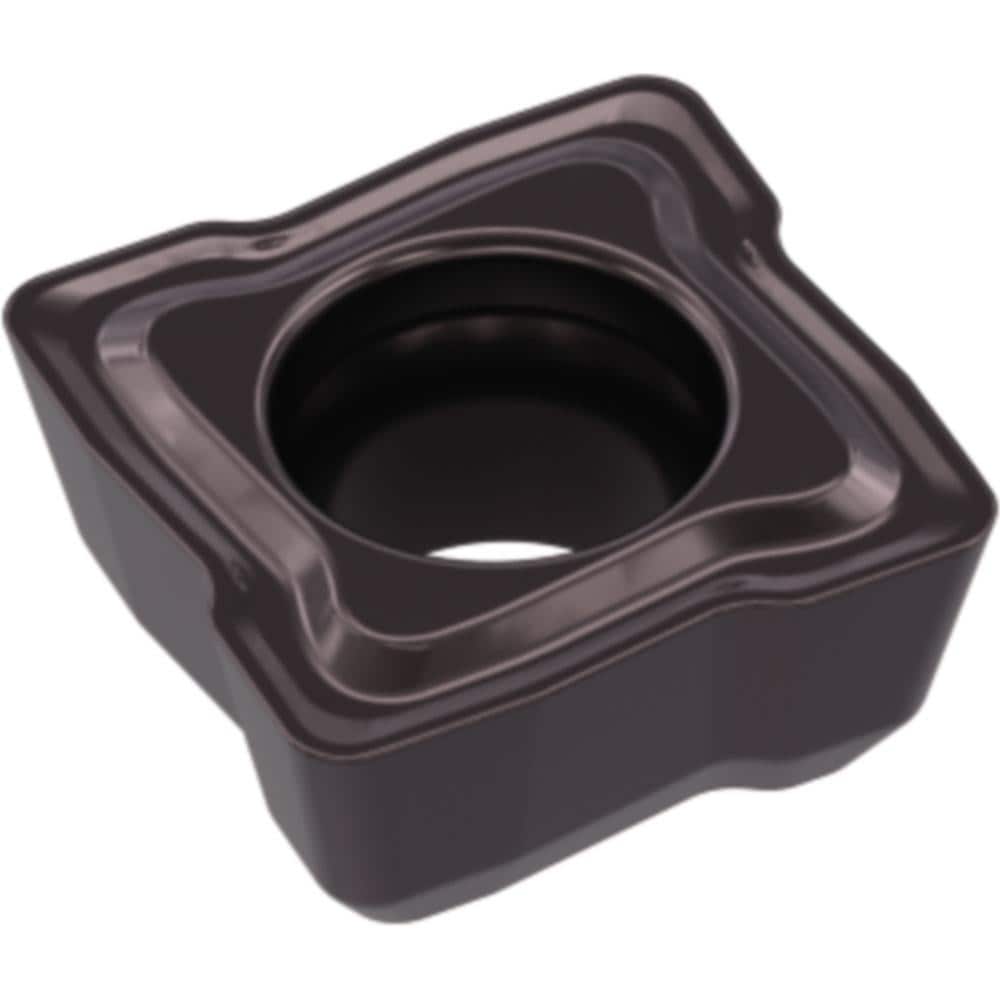

Brand: Widia / Part #: 6858589
Item #: 08008641
Brand: Widia
Model #: 6858589
Product Specifications
| Insert Style | TCF |
| Insert Size Code | 120412 |
| Insert Material | Carbide |
| Manufacturer Grade | WU20PH |
| Inscribed Circle (Decimal Inch) | 0.4960 |
| Cutting Direction | Neutral |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0460 |
| Chipbreaker | DU |
| Series | TCF |
| Coating Process | PVD |
| Shape | Irregular |
| Hole Diameter (Decimal Inch) | 0.1890 |
| Number Of Cutting Edges | 4 |
| Relief Angle | 11.000 |
| Rake | Positive |
| Primary Workpiece Material | Universal |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Secondary Workpiece Material Code | P; S; K; M |
| Ansi Code | TCF120412FPDU |
| Iso Code | TCF120412FPDU |
| Drill Style | TCF |
| Insert Size | 12 |
| Coating Classification | PVD |
| Width (Decimal Inch - 4 Decimals) | 0.5276 |
| Length (Decimal Inch - 4 Decimals) | 0.5276 |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1654 |
| Coating/Finish | TiALN |
