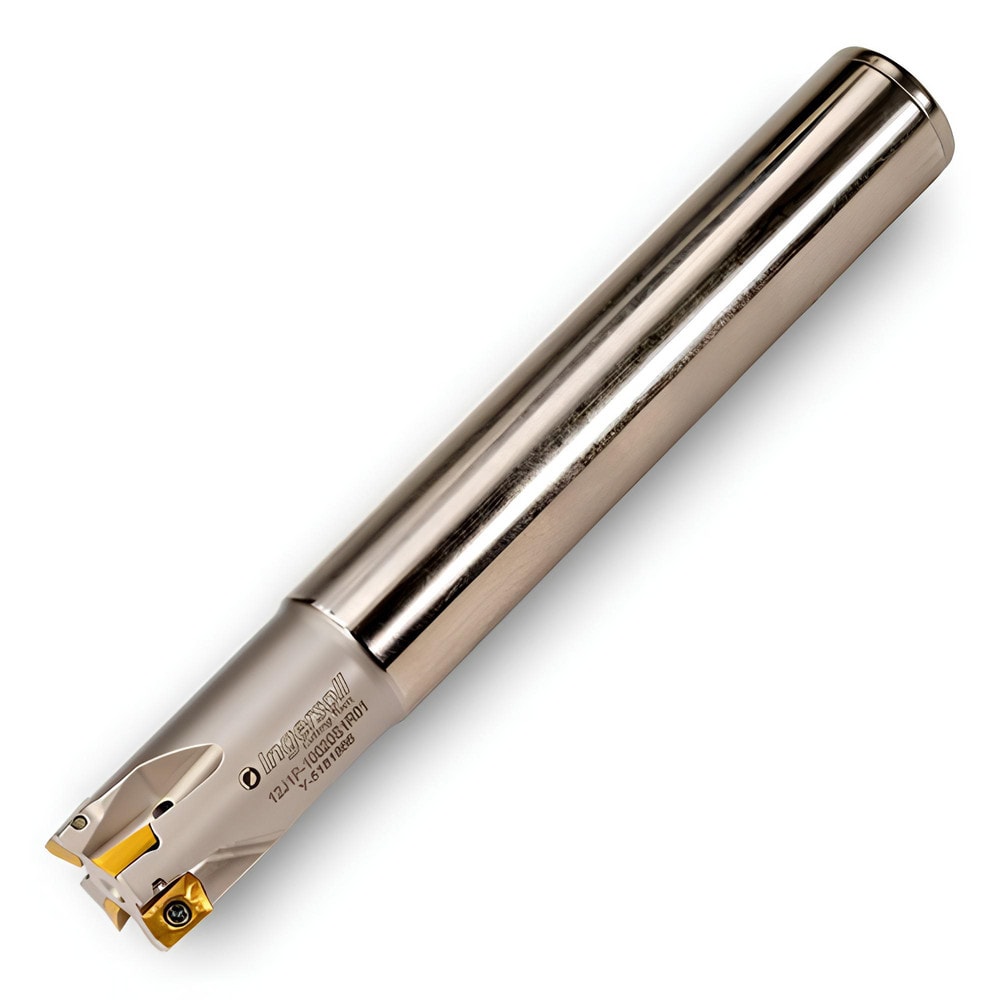

Brand: Ingersoll Cutting Tools / Part #: 2927440
Item #: 96734405
Brand: Ingersoll Cutting Tools
Model #: 2927440
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.5000 |
| Minimum Cutting Diameter (Inch) | 1/2 |
| Maximum Cutting Diameter (Decimal Inch) | 0.5000 |
| Maximum Cutting Diameter (Inch) | 1/2 |
| Maximum Depth of Cut (mm) | 8.89 |
| Maximum Depth of Cut (Decimal Inch) | 0.3500 |
| Cutter Style | 12J1P |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Maximum Ramping Angle | 1.5 ? |
| Insert Holding Method | Screw |
| Overall Length (mm) | 127.0000 |
| Overall Length (Decimal Inch) | 5.0000 |
| Tool Material | Steel |
| Series | 12J1P |
| Flute Type | Spiral |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 3.2100 |
| Shank Length (mm) | 81.530 |
| Head Length (Decimal Inch) | 1.7900 |
| Head Length (mm) | 45.47 |
| Tool Application | Facing; Shouldering; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Shoulder Square End Mill |
| Rake | Positive |
| Complete Insert Compatibility | ZOMT09..; BOxT09.. |
| Insert Compatibility | ZOMT09..; BOxT09.. |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| Manufacturers Catalog Number | 12J1P-05030S6R10 |
| Usable Length (mm) | 45.470 |
| Number Of Flutes | 1 |
| Usable Length (Decimal Inch) | 1.7900 |
| Number Of Cutter Inserts | 1 |
| Coolant Through | Yes |
