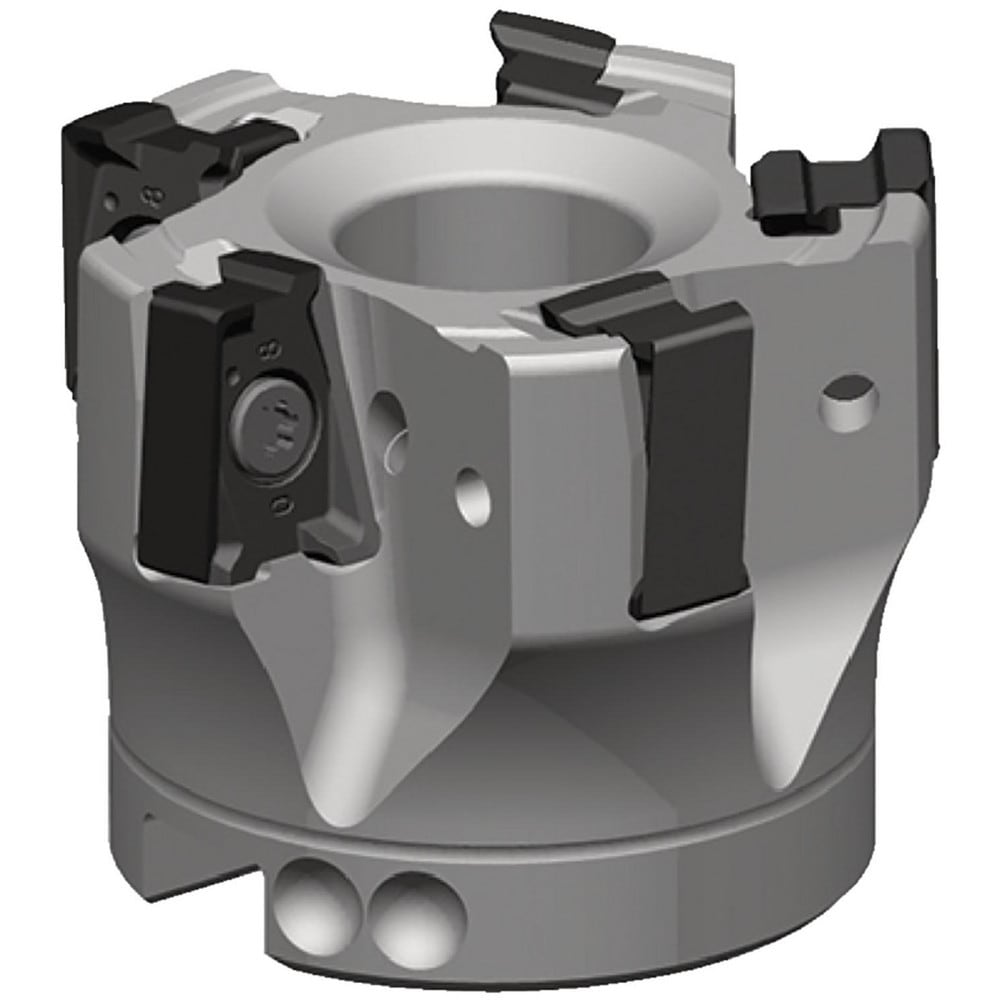

Brand: Widia / Part #: 6596067
Item #: 09790510
Brand: Widia
Model #: 6596067
Product Specifications
| Minimum Cutting Diameter (mm) | 100.00 |
| Maximum Cutting Diameter (mm) | 100.00 |
| Maximum Depth of Cut (mm) | 15.00 |
| Arbor Hole Diameter (mm) | 32.00 |
| Compatible Insert Size Code | XNGU15T6.. |
| Maximum Ramping Angle | 0 |
| Cutter Style | VSM |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative (Axial); Negative (Radial) |
| Rake Angle | -13.630 |
| Series | VSM490 |
| Maximum Body Diameter (mm) | 97.02 |
| Overall Height (Mm - 5 Decimals) | 50.00000 |
| Keyway Width (mm) | 14.48 |
| Hub Diameter (mm) | 80.000 |
| Maximum RPM | 10900.000 |
| Tool Application | Milling; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number of Adjustable Pockets | 0 |
| ISO Number | VSM490D100Z08S32XN15 |
| Coolant Hole Diameter (Decimal Inch) | 0.1180 |
| Complete Insert Compatibility | XNGU15T608SRMM |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | VSM490D100Z08S32XN15 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 8 |
| Number Of Flutes | 8 |
