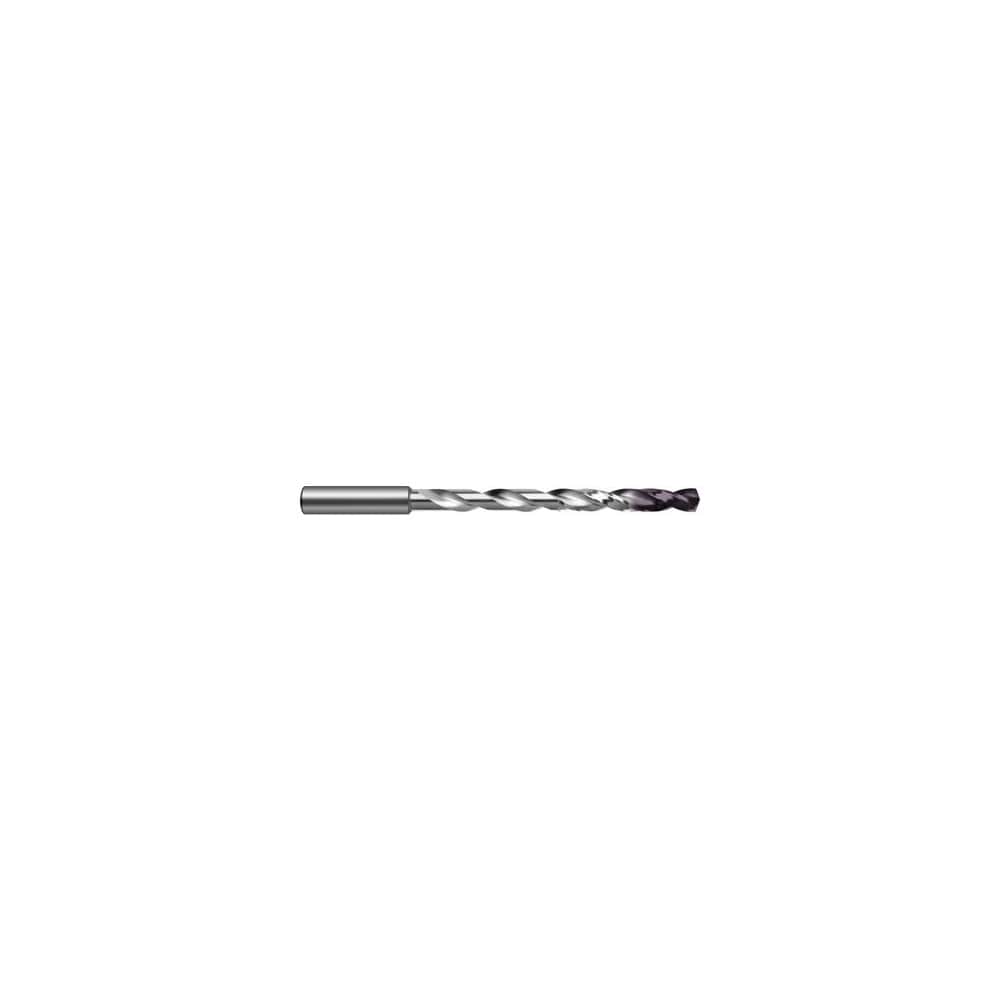

Brand: Guhring / Part #: 9064990158700
Item #: 75100024
Brand: Guhring
Model #: 9064990158700
Product Specifications
| Drill Bit Size (mm) | 15.87 |
| Overall Length (mm) | 282.0000 |
| Flute Length (mm) | 230.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | Nano-FIREX |
| Drill Point Angle | 140 |
| Shank Type | Straight |
| Coolant Through | Yes |
| Flute Type | Helical |
| Series | 6499 |
| Point Type | Cone Relief |
| Cutting Direction | Right Hand |
| Tool Application | Deep Hole Drilling |
| Spiral Type | Regular Spiral |
| Drill Bit Diameter Tolerance | h7 |
| Number Of Flutes | 2 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Titanium Alloy; Hardened Steel |
| Secondary Workpiece Material Code | S; H; K; M |
| Drill Bit Size (Decimal Inch) | 0.6248 |
| Shank Diameter (mm) | 16.0000 |
| Shank Length (mm) | 48.000 |
| Flute By Diameter Ratio | 12xD |
| Maximum Drilling Depth (mm) | 206.20 |
