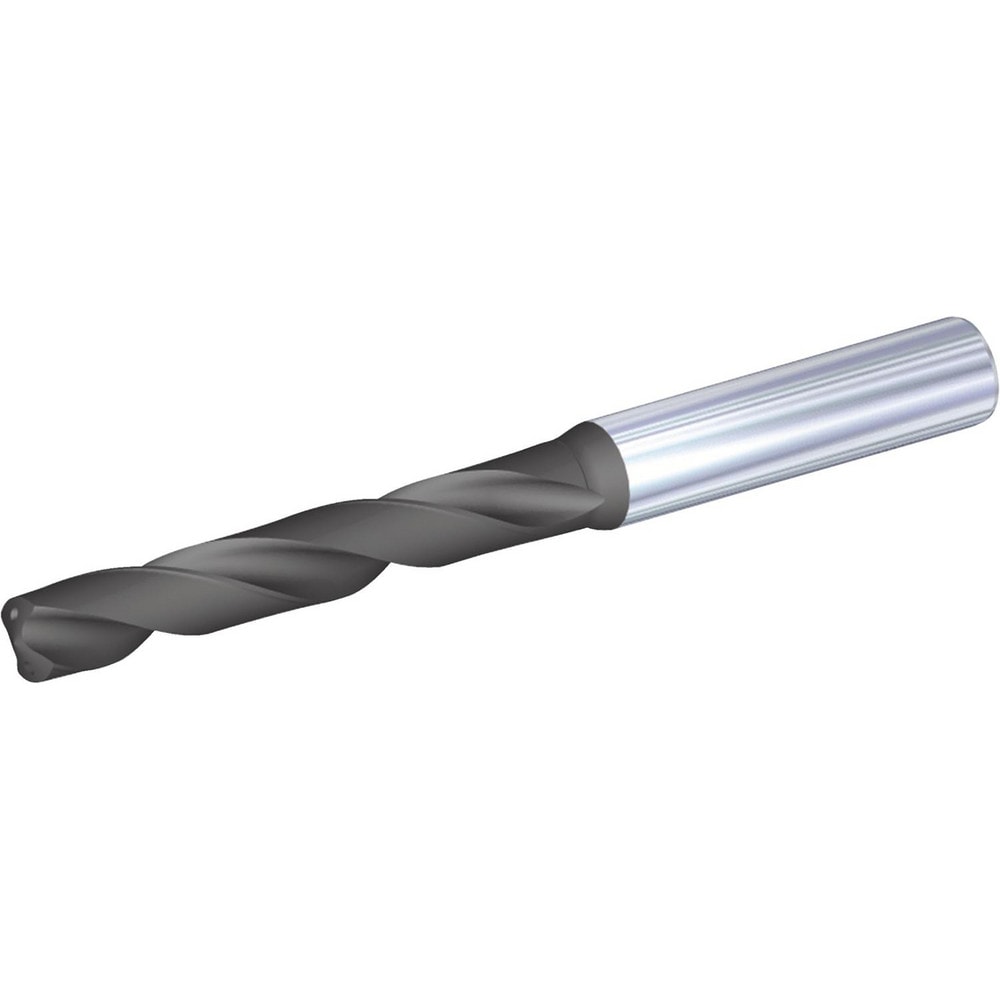

Brand: Widia / Part #: 4162834
Item #: 74965781
Brand: Widia
Model #: 4162834
Product Specifications
| Drill Bit Size (mm) | 12.50 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiAlN |
| Drill Point Angle (Degrees) | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Cylindrical |
| Number of Flutes | 2 |
| Overall Length (mm) | 124.0000 |
| Flute Length (mm) | 77.00 |
| Series | TDS402 |
| Tool Application | Drilling |
| Flute Length x Diamter Ratio | 5 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 14.0000 |
| Maximum Drilling Depth (mm) | 60.00 |
| Shank Length (mm) | 45.000 |
| Number of Flats | 2 |
| Drill Point Length (mm) | 2.15 |
| Drill Bit Diameter Tolerance | 0.007000 to 0.025000 mm |
| Tool Performance | High Performance |
| Double Margin | Yes |
| Drill Bit Grade | WP20PD |
| Material Grade | WP20PD |
