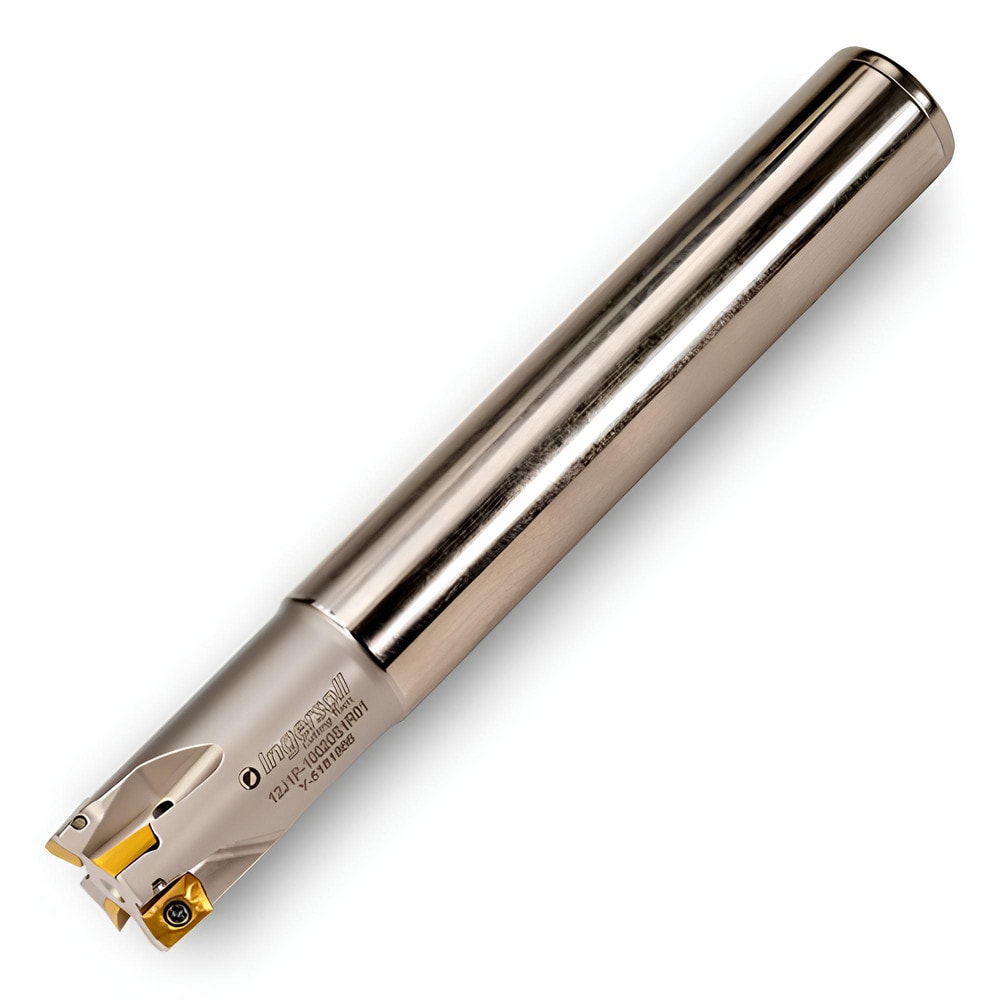

Brand: Ingersoll Cutting Tools / Part #: 2929487
Item #: 16221236
Brand: Ingersoll Cutting Tools
Model #: 2929487
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.7500 |
| Minimum Cutting Diameter (Inch) | 3/4 |
| Maximum Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Cutting Diameter (Inch) | 3/4 |
| Maximum Depth of Cut (mm) | 8.89 |
| Maximum Depth of Cut (Decimal Inch) | 0.3500 |
| Cutter Style | 12J1P |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Maximum Ramping Angle | 1.5 ? |
| Insert Holding Method | Screw |
| Overall Length (mm) | 177.8000 |
| Overall Length (Decimal Inch) | 7.0000 |
| Tool Material | Steel |
| Series | 12J1P |
| Flute Type | Spiral |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 5.1500 |
| Shank Length (mm) | 130.810 |
| Head Length (Decimal Inch) | 1.8500 |
| Head Length (mm) | 46.99 |
| Tool Application | Facing; Shouldering; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Shoulder Square End Mill |
| Rake | Positive |
| Complete Insert Compatibility | ZOMT09..; BOxT09.. |
| Insert Compatibility | ZOMT09..; BOxT09.. |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| Manufacturers Catalog Number | 12J1P-07020S7R01 |
| Usable Length (mm) | 46.990 |
| Number Of Flutes | 3 |
| Usable Length (Decimal Inch) | 1.8500 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
