Enerpac - Portable Hydraulic Cylinders Type: Single Acting Load Capacity (Ton): 10 (Inch) - Americas Industrial Supply

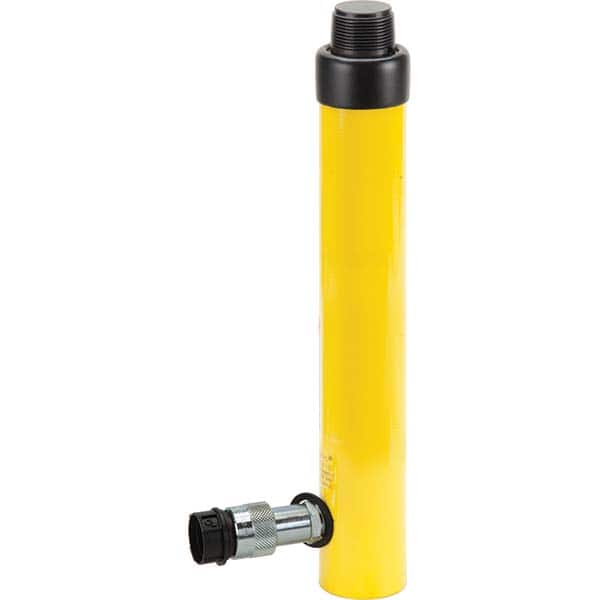

Enerpac - Portable Hydraulic Cylinders Type: Single Acting Load Capacity (Ton): 10 (Inch)


Item #: 10305530
Brand: Enerpac
Model #: RA1010

Product Specifications

Portable Hydraulic Cylinders; Type: Single Acting ; Load Capacity (Ton): 10 (Inch); Piston Stroke (Decimal Inch): 10.1250 ; Cylinder Bore Diameter (Decimal Inch): 1.25 ; Lowered Height: 15.88 ; Oil Capacity: 22.61
Type Single Acting
Load Capacity (Ton) 10
Piston Stroke (Decimal Inch) 10.1250
Cylinder Bore Diameter (Decimal Inch) 1.25
Lowered Height 15.88
Oil Capacity 22.61
Maximum Height (Decimal Inch) 26.0000
Outside Diameter (Inch) 2-1/4
Plunger Diameter 1.2500
Saddle Diameter (Inch) 2.23
Plunger Internal Thread Size 1-1/4 - 12
$1,174.82
