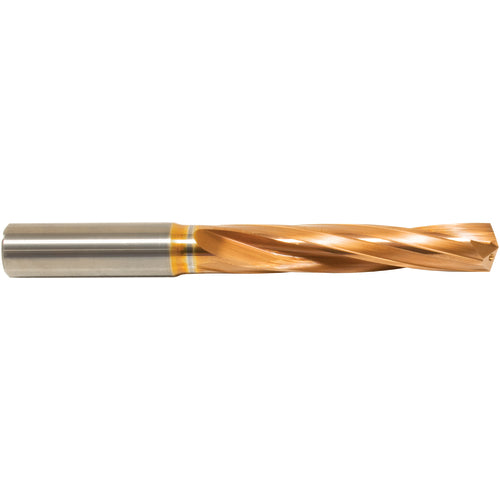

1/4″ Dia 8 mm Shank 53 mm Flute Length 91 mm OAL, 5xD, 135°, ZrCN, 2 Flute, Coolant Thru, Round Solid Carbide Drill Series/List #NG05
Item #: MT711443940
Brand: Morse Cutting Tools
Model #: 1443940
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 1/4″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/4″ |
| Tool Type | Drill |
| Decimal Equivalent | 0.25″ |
| Point Shape | Self Centering |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | E |
| Measurement Type | Inch | Letter |
| Length Group | 5xD |
| Series/List # | DBIC26 |
| Coating | ZrCN |
| Usable Length (LU) | 53 mm |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Length Chip Flute (LCF) | 53 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Overall Length (OAL) | 91 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 2 |
| Point Angle (SIG) | 135 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 15 Degrees |
| Body Material | Carbide |
| Shank Type | Round |
