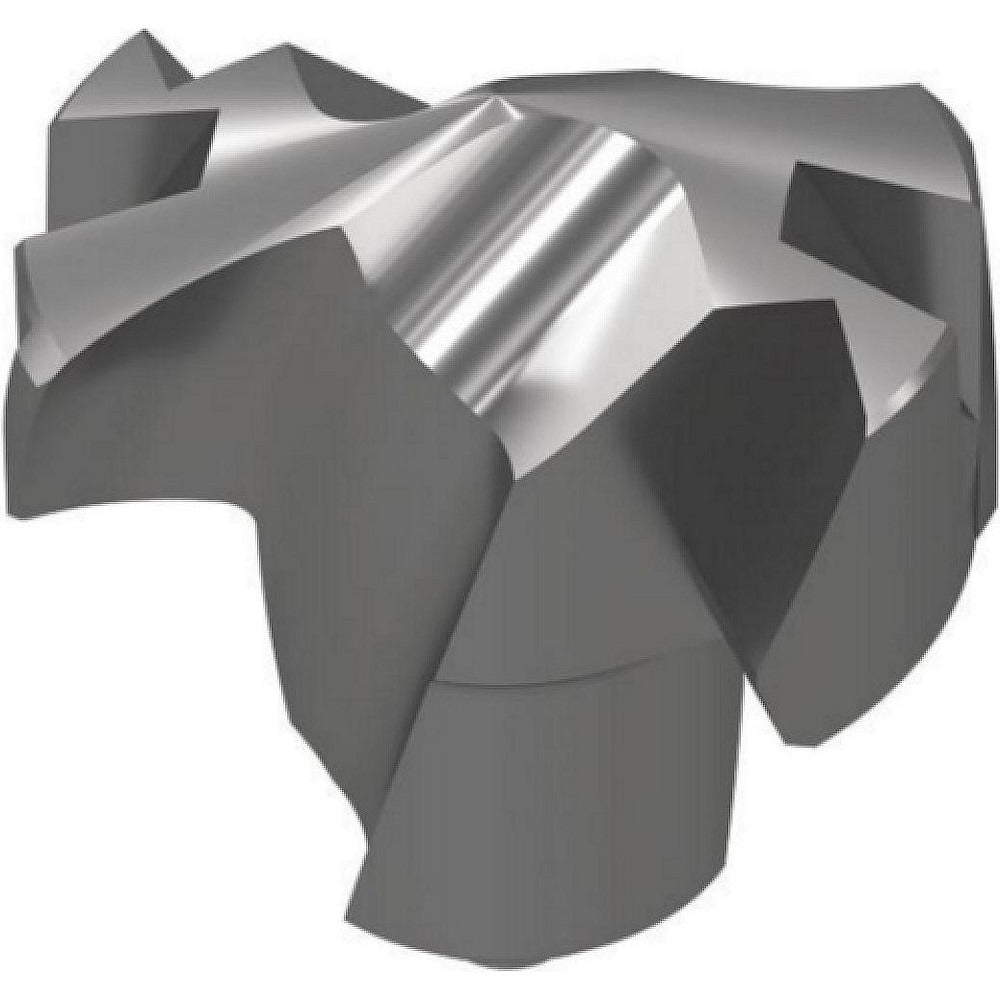

Brand: Widia / Part #: 3850979

Brand: Widia / Part #: 3850979


Item #: 02628030
Brand: Widia
Model #: 3850979

Product Specifications

Maximum Drill Diameter (Decimal Inch) 0.4062
Diameter (Decimal Inch) 0.4062
Point Angle 140.00
Diameter (Inch) 13/32
Tip Material Solid Carbide
Manufacturer Grade WU25PD
Material Grade Submicron
Cutting Direction Right Hand
Series Top Drill M1
Coating Process PVD
Insert Geometry UPM
Insert Seat Size W14
Primary Workpiece Material Cast Iron; Steel
Primary Workpiece Material Code P; K
Height (mm) 10.9300
Minimum Cutting Diameter (Decimal Inch) 0.4062
Drill Point Angle 140
Insert Holding Method Spring Clamp
Minimum Cutting Diameter (Inch) 13/32
ISO Number TDM1032UPM
Coolant Through No
Cutting Diameter (Decimal Inch) 0.4062
Cutting Diameter (Inch) 13/32
Coating Classification PVD
Applications Drilling
Coating/Finish TiAlN
Included Angle Degree 140
Number Of Flutes 2
$67.91
