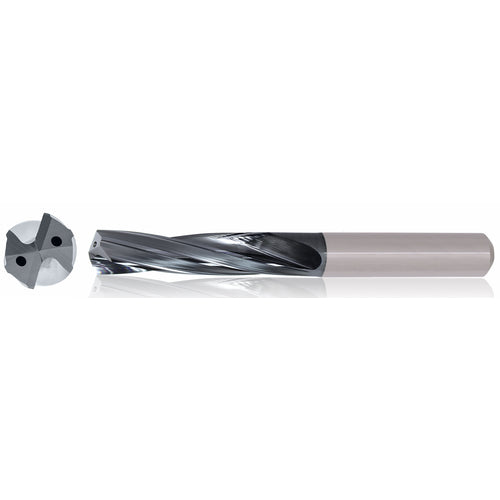

3/8″ Dia. × 10 mm Shank × 61 mm Flute Length × 103 mm OAL, 5xD, TiAlCN, 2 Flute, Coolant Thru, h6, Cylindrical, Solid Carbide Drill Series/List #5613
Item #: MT0301008
Brand: Morse Cutting Tools
Model #: 01008
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 3/8″ |
| Shank Standard | h6 |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/8″ |
| Tool Type | High Performance Carbide Drill |
| Decimal Equivalent | 0.375″ |
| Flute Type | Helical |
| Length Group | 5xD |
| Measurement Type | Inch |
| Coating | TiAlCN |
| Series/List # | 5613 |
| Applicable Material | Cast Iron |
| Usable Length (LU) | 61 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Length Chip Flute (LCF) | 61 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 103 mm |
| Point Angle (SIG) | 15 Degrees |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 61 mm |
| Feature | TRIPLE-MARGIN DRILL, COOLANT THRU |
| Flute Helix Angle (FHA) | 15 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Cylindrical |
| Body Material | Carbide |
