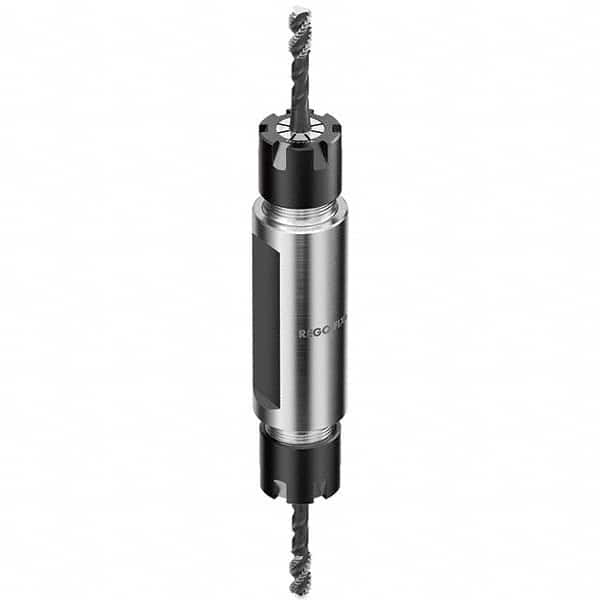

Rego-Fix - 0.5mm x 7mm Straight Shank ER11 Collet Chuck
Item #: 18469767
Brand: Rego-Fix
Model #: 4616.21192
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER11 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 16.00 |
| Projection (mm) | 140.00 |
| Through Coolant | Yes |
| Minimum Collet Capacity (mm) | 0.50 |
| Maximum Collet Capacity (mm) | 7.00 |
| Overall Length (mm) | 159.50 |
| Actuator Type | Wrench |
| Type | ER Collet |
| Shank Length (mm) | 140.00 |
| Nose Diameter (mm) | 16.00 |
| Locknut Diameter (Decimal Inch) | 0.6304 |
| TIR (Decimal Inch) | 0.0002 |
| TIR (mm) | 0.0030 |
| TIR (mum) | 3.00 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (mm) | 16.00 |
| Additional Information | With Hi-Q Nut |
