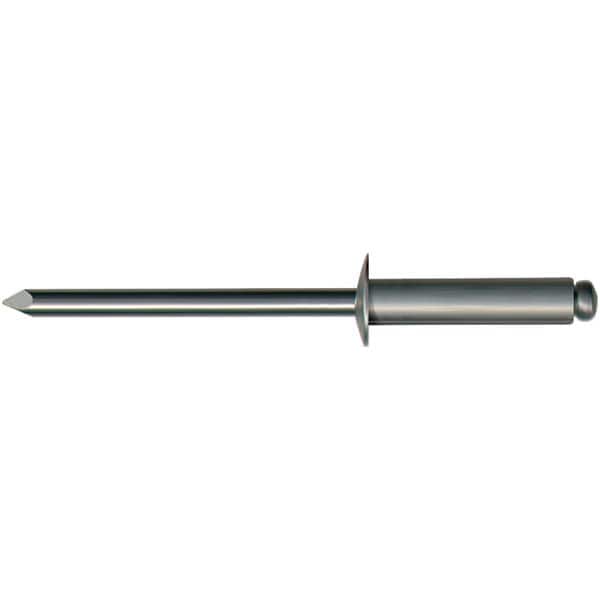

Marson - Blind Rivets Type: Open End Head Type: Button
Item #: 10332203
Brand: Marson
Model #: M40450
Features and Benefits
Open end rivets are used when disassembly is difficult or not required.
Button head fasteners have cylindrical heads with curved tops and flat bearing surfaces. They slightly protrude out of the workpiece and are used for aesthetic purposes.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Product Specifications
Blind Rivets; Type: Open End ; Head Type: Button ; Size Code: 68 ; Rivet Material: Stainless Steel ; Mandrel Material: Stainless Steel ; Minimum Grip (Decimal Inch): 0.3760
| Type | Open End |
| Head Type | Button |
| Size Code | 68 |
| Rivet Material | Stainless Steel |
| Mandrel Material | Stainless Steel |
| Minimum Grip (Decimal Inch) | 0.3760 |
| Maximum Grip (Decimal Inch) | 0.5000 |
| Head Diameter (Decimal Inch) | 0.375 |
| Minimum Hole Diameter (Decimal Inch) | 0.1920 |
| Maximum Hole Diameter (Decimal Inch) | 0.1960 |
| Rivet Material Grade | 5052 |
| Drill Size (Wire) | #11 |
| Body Diameter (Decimal Inch) | 0.1875 |
| Shear Strength (Lb.) | 1150 |
| Tensile Strength (Lb.) | 1300 |
| Fastener Standard | IFI 114 Grade 51 |
| Head Height (Decimal Inch) | 0.0600 |
