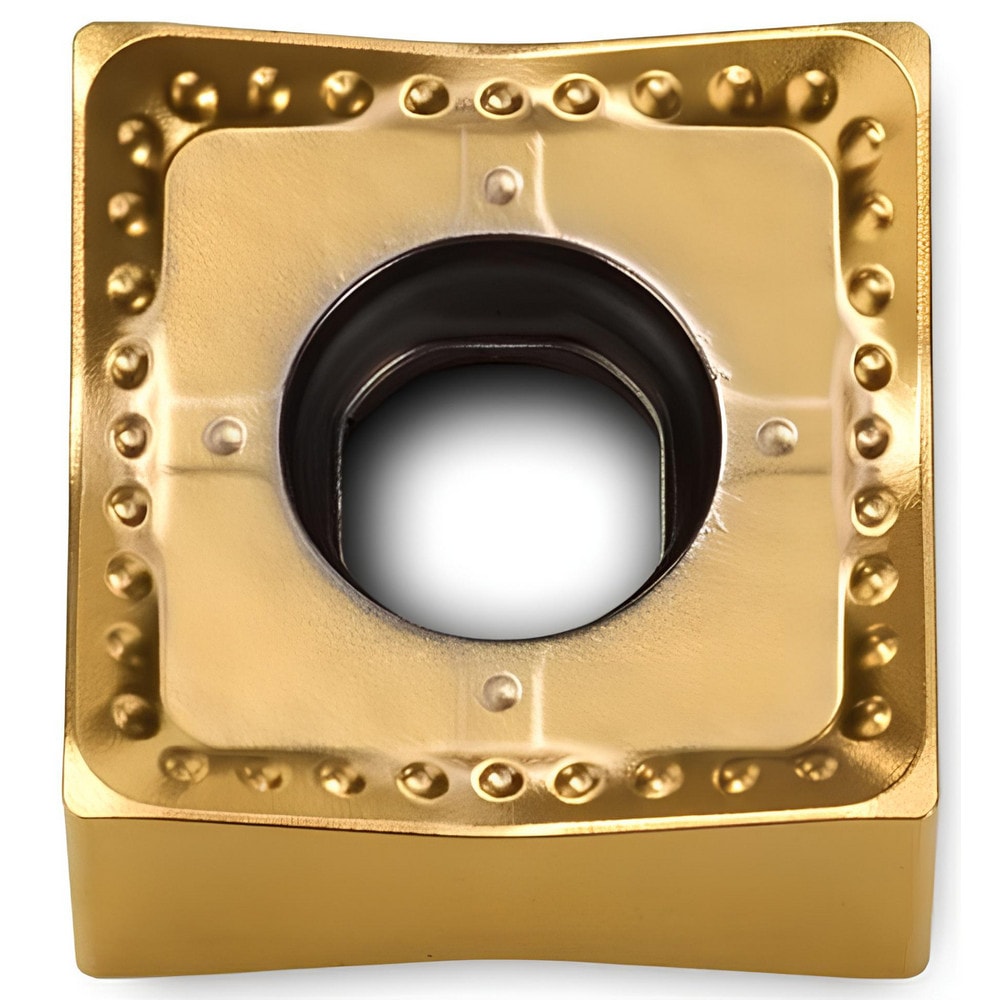

Brand: Ingersoll Cutting Tools / Part #: 5873919
Item #: 18320705
Brand: Ingersoll Cutting Tools
Model #: 5873919
Product Specifications
| Insert Style | SNGU |
| Insert Size Code | 130604 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2505 |
| Inscribed Circle (Decimal Inch) | 0.5300 |
| Corner Radius (Inch) | 1/64 |
| Insert Hand | Neutral |
| Series | SNGU |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.5150 |
| Number Of Cutting Edges | 8 |
| Insert Shape | Square |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Ansi Code | SNGU130604N |
| Rake Angle | 0.000 |
| Manufacturers Catalog Number | SNGU130604N IN2505 |
| Cutter Series Compatibility | DJ6T; DJ5T; DQ6T; DQ5T |
| Chip Breaker | None |
| Cutting Direction | Neutral |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5300 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2680 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5300 |
