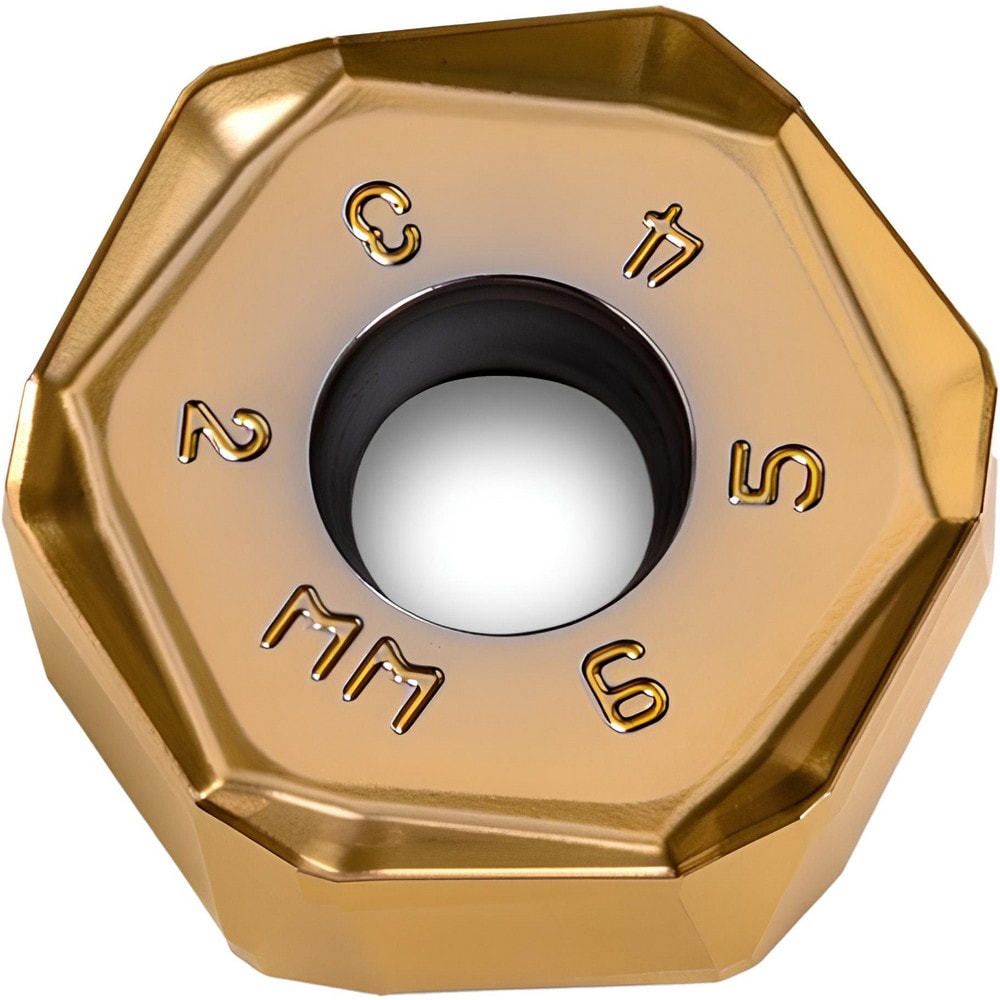

Brand: Ingersoll Cutting Tools / Part #: 6307384
Item #: 12370219
Brand: Ingersoll Cutting Tools
Model #: 6307384
Product Specifications
| Insert Style | HNGU |
| Insert Size Code | 1007 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2510 |
| Inscribed Circle (Decimal Inch) | 0.7520 |
| Insert Hand | Right Hand |
| Series | HNGU |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.3750 |
| Number Of Cutting Edges | 12 |
| Insert Shape | Hexagon |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | HNGU1007ANTR-MM |
| Rake Angle | 0.000 |
| Manufacturers Catalog Number | HNGU1007ANTR-MM IN2510 |
| Cutter Series Compatibility | HN6G; HN5G |
| Chip Breaker | MM |
| Cutting Direction | Right Hand |
| Shape | Hexagon |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 120 |
| Width (Decimal Inch - 4 Decimals) | 0.7520 |
| Thickness (Decimal Inch - 4 Decimals) | 0.3270 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.7520 |
