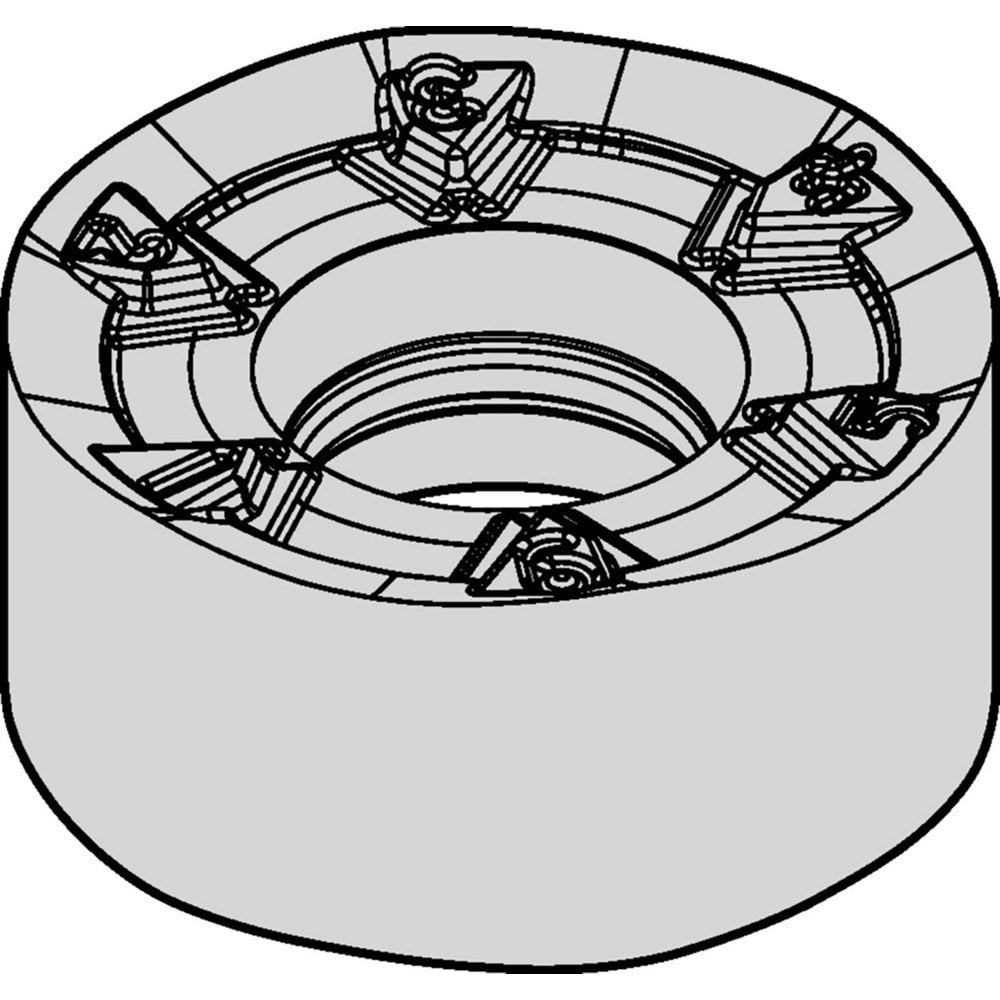

Brand: Widia / Part #: 5476637

Brand: Widia / Part #: 5476637


Item #: 93438653
Brand: Widia
Model #: 5476637

Product Specifications

Insert Style RNPJ
Insert Size Code 1605
Insert Size 16
Insert Material Carbide
Manufacturer Grade WU35PM
Inscribed Circle (Decimal Inch) 0.6299
Inscribed Circle (mm) 16.00
Corner Radius (Decimal Inch) 0.3150
Corner Radius (mm) 8.00
Insert Hand Neutral
Relief Angle 0.000
Series M200
Coating Process PVD
Hole Diameter (Decimal Inch) 0.2283
Maximum Depth of Cut (Decimal Inch) 0.3150
Number Of Cutting Edges 2
Insert Shape Round
Rake Negative
Primary Workpiece Material Stainless Steel; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; M
Ansi Code RNPJ1605M0SMM
Iso Code RNPJ1605M0SMM
Manufacturers Catalog Number RNPJ1605M0SMM
Cutter Series Compatibility M200 RN16 CT
Chip Breaker MM
Cutting Direction Neutral
Material Application High-Strength Steel; Cast Iron; Steel
Shape Round
Length of Cut (mm) 8.0000
Insert Holding Method Screw
Coating Classification PVD
Single or Double Sided Insert Double
Coating/Finish AlTiN
Length 16.00
Width (Decimal Inch - 4 Decimals) 0.6299
Width (Mm - 2 Decimals) 16.00
Thickness (Decimal Inch - 4 Decimals) 0.2173
Multi-Use Tool Yes
Length (Decimal Inch - 4 Decimals) 0.6299
$18.27
