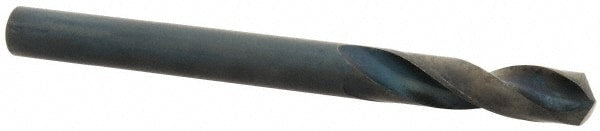

Brand: Guhring / Part #: 9003290056100
Item #: 00859520
Brand: Guhring
Model #: 9003290056100
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.2210 |
| Drill Bit Size (Wire) | #2 |
| Tool Material | Cobalt |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 130 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2209 |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5984 |
| Series | 329 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 0.7710 |
| Maximum Drilling Depth (mm) | 19.59 |
| Shank Length (Decimal Inch) | 1.4961 |
| Shank Length (mm) | 38.00 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.000 to -0.018 mm |
| Standards | DIN 1897 |
| Flute Length (mm) | 28.00 |
| Drill Bit Size Range (Decimal Inch) | 0.2000 to 0.2500 |
| Specification Number | DIN 1897 |
| Specification Designation | DIN |
