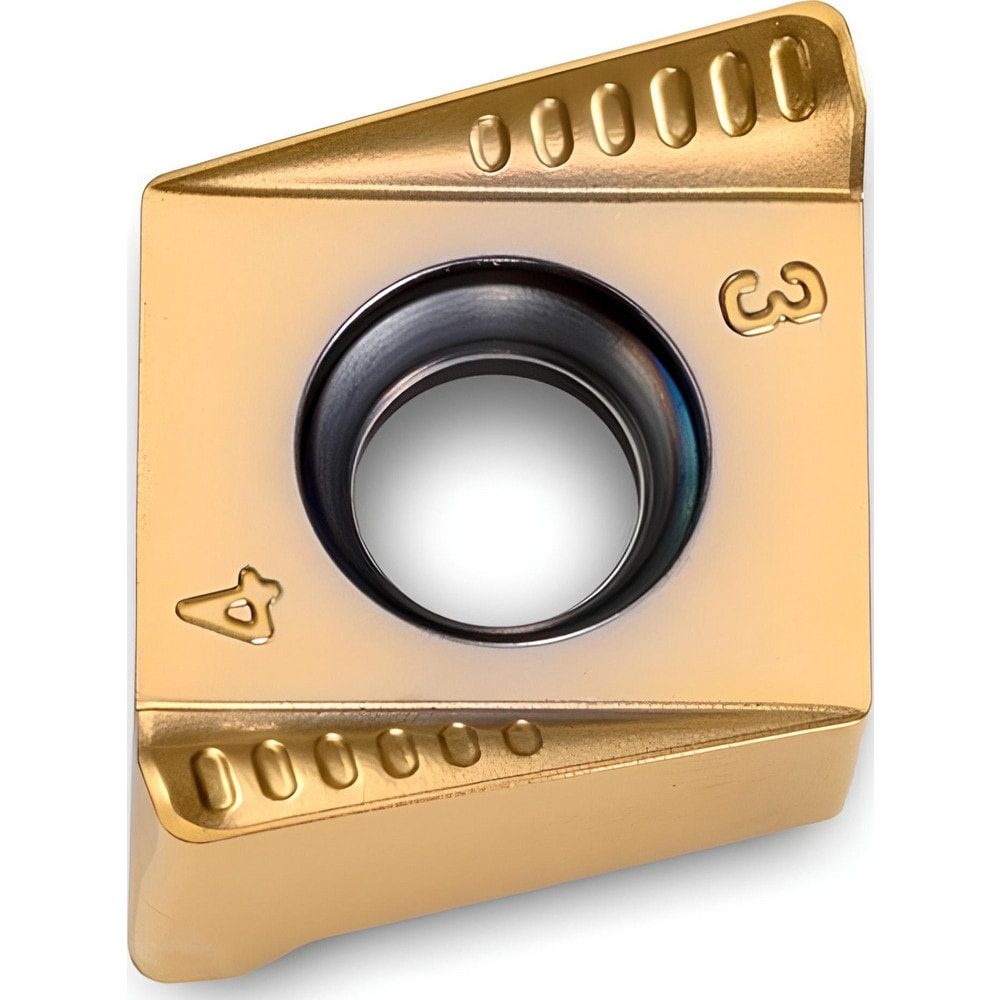

Brand: Ingersoll Cutting Tools / Part #: 6186998
Item #: 96438718
Brand: Ingersoll Cutting Tools
Model #: 6186998
Product Specifications
| Insert Style | MNHU |
| Insert Size Code | 140708 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2505 |
| Inscribed Circle (mm) | 14.00 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Right Hand |
| Series | MNHU |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.5400 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Parallelogram |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Ansi Code | MNHU140708PNR-M |
| Rake Angle | 0.000 |
| Manufacturers Catalog Number | MNHU140708PNR-M IN2505 |
| Cutter Series Compatibility | TJ.J; 1TJ1J |
| Chip Breaker | M |
| Cutting Direction | Right Hand |
| Shape | Parallelogram |
| Length of Cut (mm) | 13.7200 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 86 |
| Length | 14.00 |
| Width (Mm - 2 Decimals) | 14.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.3810 |
| Multi-Use Tool | Yes |
