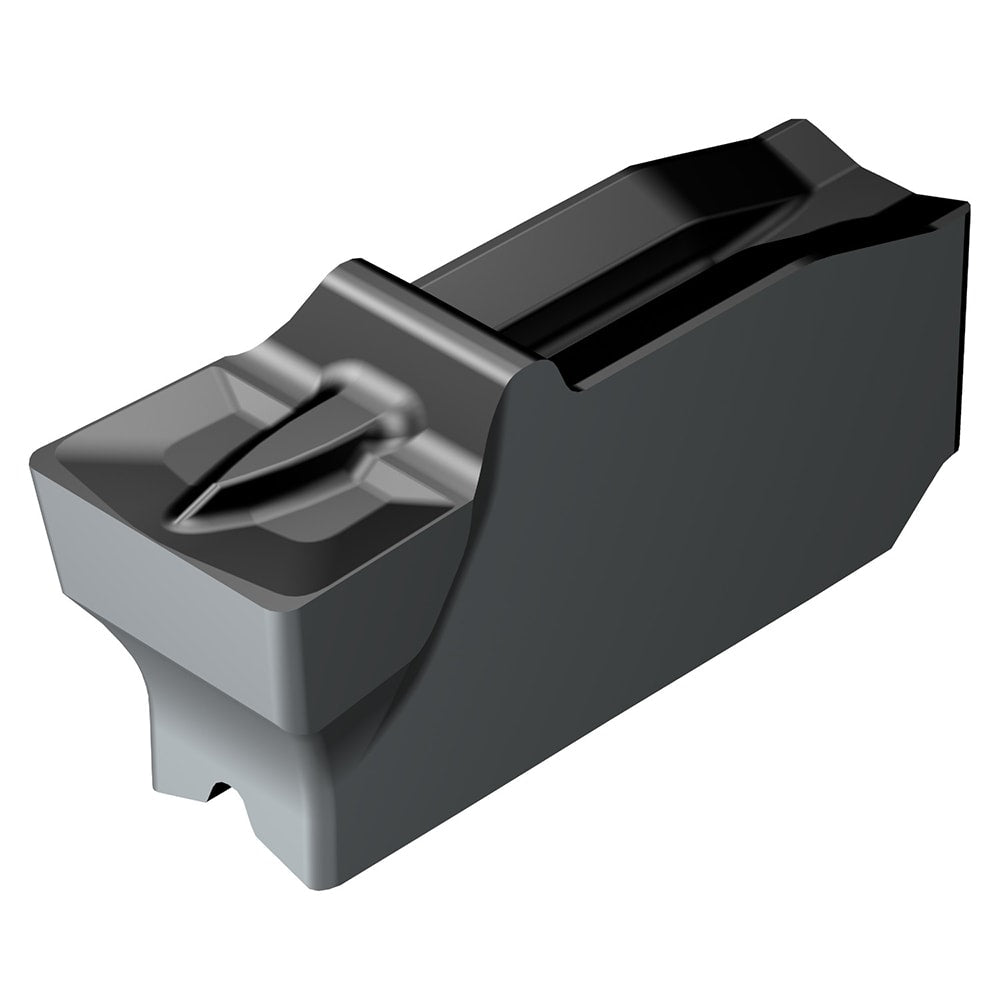

Brand: Sandvik Coromant / Part #: 7937605
Item #: 98807266
Brand: Sandvik Coromant
Model #: 7937605
Product Specifications
| Insert Style | QI-N |
| Insert Size Code | J |
| Insert Size | J |
| Insert Material | Carbide |
| Manufacturer Grade | 1105 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Cutting Width (mm) | 5.000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Corner Radius (mm) | 0.2 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Lead Angle | 0.000 |
| Rake | Neutral |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving |
| Series | CoroCut? QI |
| Coating Process | PVD |
| Rake Angle | 0.000 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Non-Ferrous Metal |
| Secondary Workpiece Material Code | N |
| Ansi Code | QI-NJ-0500-0002-GF 1105 |
| Iso Code | QI-NJ-0500-0002-GF 1105 |
| Manufacturers Catalog Number | QI-NJ-0500-0002-GF 1105 |
| Chip Breaker | GF |
| Insert Seat Size | J |
| Coating/Finish | TiAlN |
| Number Of Cutting Edges | 1 |
