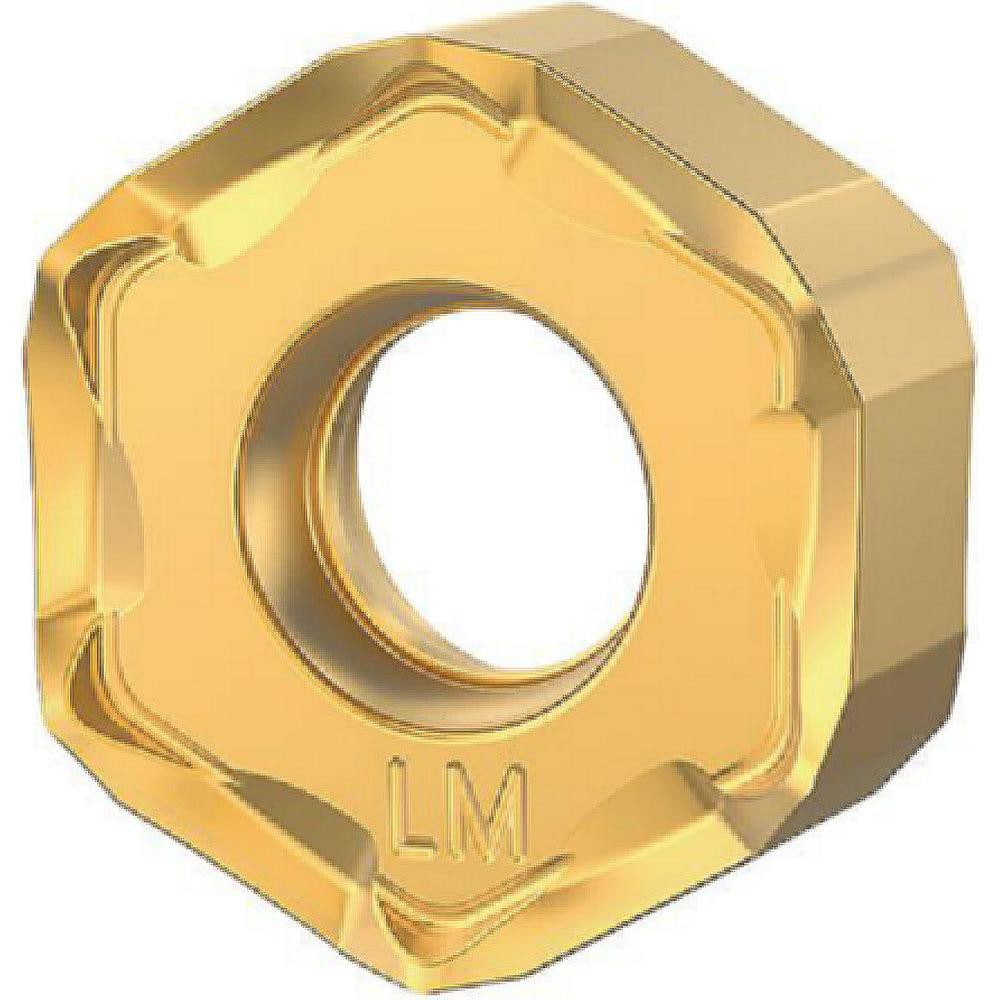

Brand: Kennametal / Part #: 7032980
Item #: 97277677
Brand: Kennametal
Model #: 7032980
Product Specifications
| Insert Style | Hexagon |
| Insert Size Code | 43 |
| Insert Material | Carbide |
| Manufacturer Grade | KCSM40 |
| Inscribed Circle (mm) | 12.00 |
| Thickness Range (Decimal Inch) | 0.1850 - 0.2000 |
| Corner Radius (mm) | 1.00 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 - 0.5000 |
| Length Range (Decimal Inch) | 0.0000 - 0.3200 |
| Insert Hand | Neutral |
| Relief Angle | 0.000 |
| Series | Dodeka Mini |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.0000 |
| Maximum Depth of Cut (mm) | 3.23 |
| Number Of Cutting Edges | 12 |
| Insert Shape | Hexagon |
| Rake | Negative |
| Ansi Code | HNPJ43ANERLM |
| Rake Angle | 0.000 |
| Manufacturers Catalog Number | HNPJ43ANERLM |
| Cutter Series Compatibility | Dodeka |
| Chip Breaker | LM |
| Cutting Direction | Left Hand; Right Hand |
| Shape | Hexagon |
| Insert Holding Method | Screw |
| Thickness (mm) | 4.7000 |
| Coating/Finish | Multilayer TiCN |
| Length | 6.41 |
| Width (Mm - 2 Decimals) | 12.00 |
