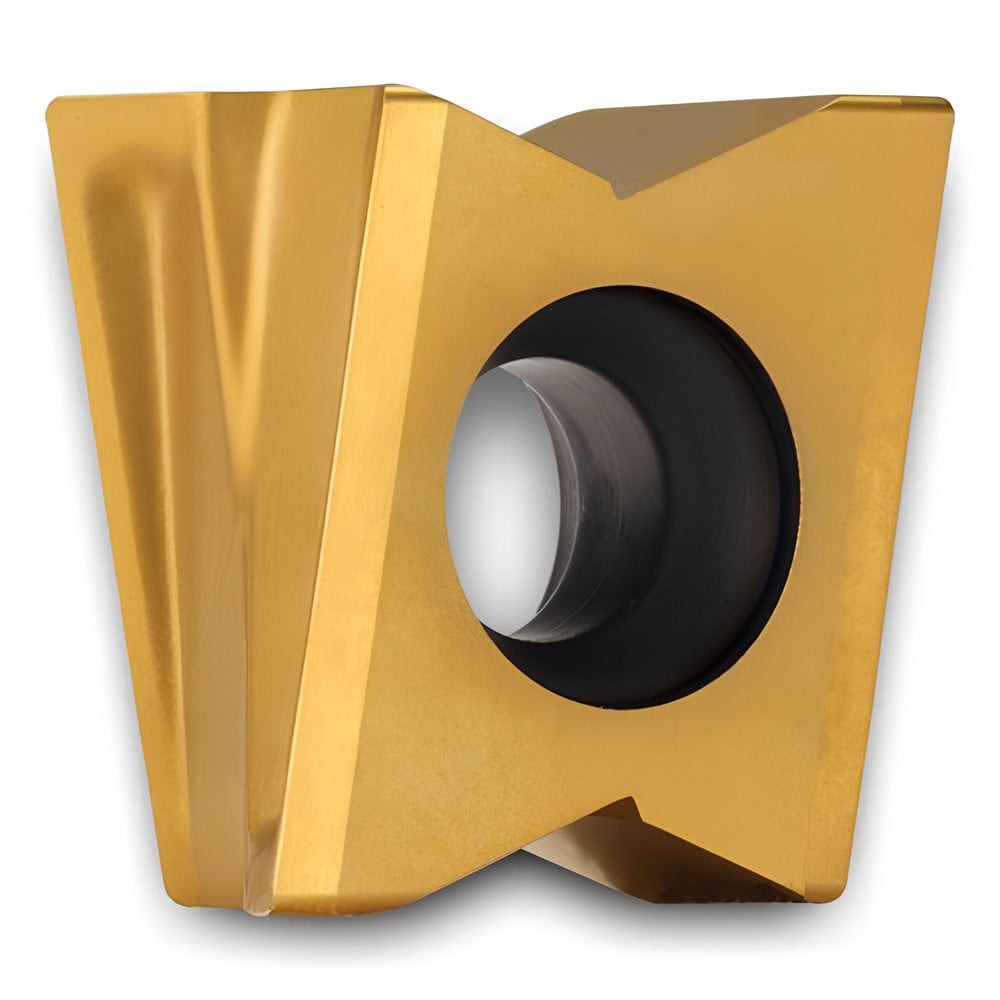

Brand: Ingersoll Cutting Tools / Part #: 2922928
Item #: 67321794
Brand: Ingersoll Cutting Tools
Model #: 2922928
Product Specifications
| Insert Style | IPM |
| Insert Size Code | 324 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2505 |
| Thickness (Inch) | 9/32 |
| Inscribed Circle (mm) | 13.00 |
| Corner Radius (Inch) | 1/64 |
| Insert Hand | Right Hand |
| Series | IPM |
| Coating Process | PVD |
| Maximum Depth of Cut (mm) | 13.00 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Rectangle |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Ansi Code | IPM324R001-MM A |
| Rake Angle | 11.000 |
| Manufacturers Catalog Number | IPM324R001-MM A IN2505 |
| Cutter Series Compatibility | 2XJ3J |
| Chip Breaker | MM |
| Cutting Direction | Right Hand |
| Shape | Rectangle |
| Length of Cut (mm) | 13.0000 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 90 |
| Length | 13.00 |
| Width (Mm - 2 Decimals) | 13.00 |
| Multi-Use Tool | Yes |
