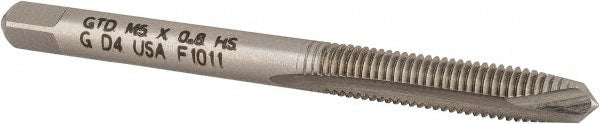

Brand: Widia / Part #: 2750009
Item #: 70749247
Brand: Widia
Model #: 2750009
Product Specifications
| Thread Size (mm) | M5x0.8 |
| Number Of Flutes | 2 |
| Chamfer | Plug |
| Thread Limit | D4 |
| Class Of Fit | 6H |
| Coating/Finish | Uncoated |
| Threads per Inch | 1 |
| Material | High Speed Steel |
| Coolant Through | Yes |
| Thread Direction | Right Hand |
| Thread Depth (Decimal Inch) | 0.8750 |
| Thread Pitch (mm) | 0.80 |
| Thread Standard | Metric Coarse |
| Thread Length (Decimal Inch) | 0.8750 |
| Overall Length (Decimal Inch) | 2.3750 |
| Cnc Shank | Yes |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Application | Through-Hole Threading |
| Tapping Depth (Decimal Inch) | 0.8750 |
| Square Length (Decimal Inch) | 0.2500 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | 5351/2351 |
| Style | Plug |
