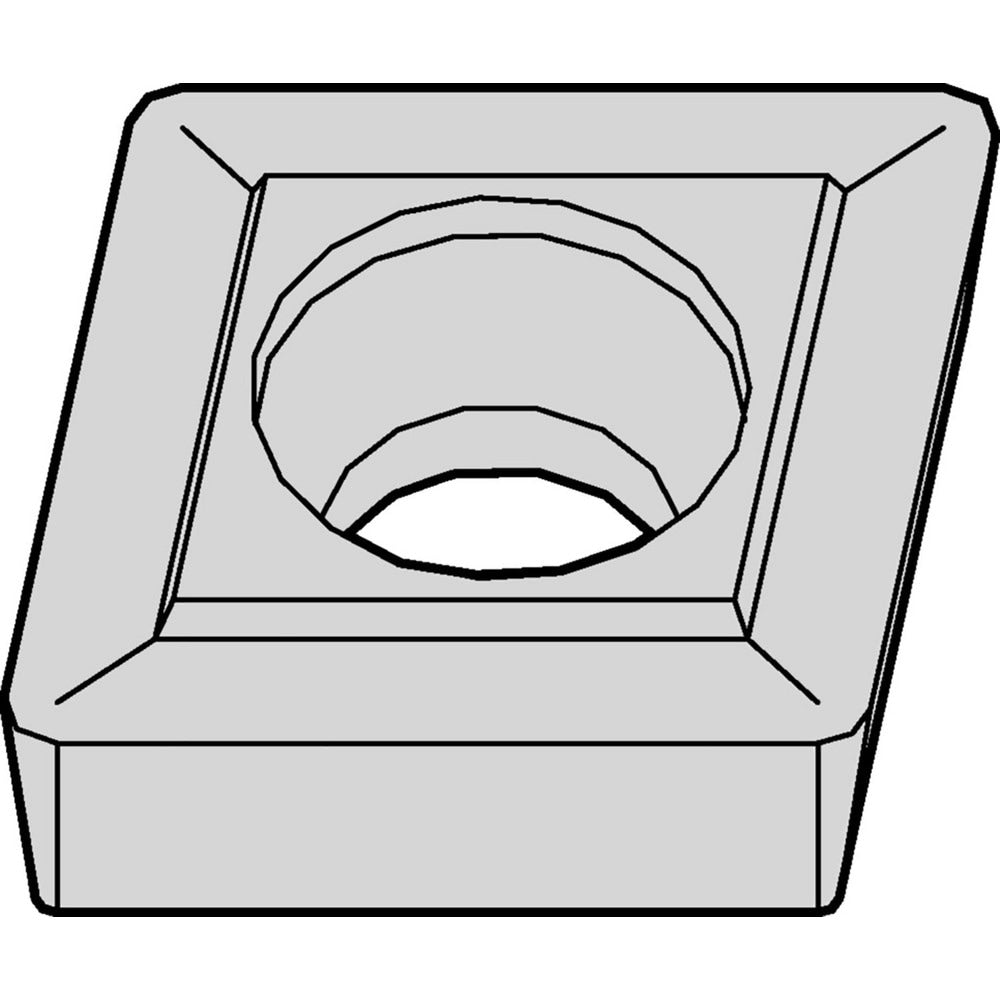

Brand: Widia / Part #: 2031706

Brand: Widia / Part #: 2031706


Item #: 95154811
Brand: Widia
Model #: 2031706

Product Specifications

Insert Style CCMT
Insert Shape Code C
Insert Size Code 322
Insert Shape Diamond
Coating/Finish Uncoated
Manufacturer Grade THM
Corner Radius (Decimal Inch) 0.0315
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1732
Maximum Depth of Cut (Decimal Inch) 0.1904
Inscribed Circle (Decimal Inch) 0.3750
Insert Holding Method Screw
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1252
Clearance Code C
Tolerance Code M
Included Angle 80.00
Relief Angle 7.000
Series CCMT
Coating Process Uncoated
Rake Positive
Wiper Edge No
Insert Length (Decimal Inch) 0.3808
Number Of Cutting Edges 4
Primary Workpiece Material Super-alloys & Titanium
Primary Workpiece Material Code S
Secondary Workpiece Material Non-Ferrous Metal
Secondary Workpiece Material Code N
Ansi Code CCMT322
Iso Code CCMT090308
Manufacturers Catalog Number CCMT322
Cutting Direction Neutral
Coating Classification Uncoated
Chip Breaker None
Style CCMT
Width (Decimal Inch - 4 Decimals) 0.3750
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$9.93
